XT-FWY001 Automatic Edge Flat Wire Winding Machine For Energy And
Power Sources
Product Features
Feature:
1, This machine is a high automatic edge flat wire winding machine.
2, The operator pre-loads material, sets up the target quantity
then pushes the start button to production.
3, Tooling is made by XINGTE with high precision. There is no need
to adjust after interchanging tooling
4, Automatic continuous winding reduces cycle times.
5, Machine equips with CNC 4-axis AC servo motor transmission
system, accuracy position control.
6, It is equipped with a PLC system, touch panel, and AC servo
motor. Parameter (program) set thru PLC system and 10″ touch panel.
7, Quickly changing tooling is offered in the machine, it does not
need tools to change it for time-saving and keep precision.
8, Password function is provided to prevent the program from being
modified by non-related person
2 . Main function
Full-auto winding machine, automatic wire feeding, auto winding,
auto wire traversing, auto wire clamp, and cut. Leader Wire auto
stripping and tin soldering. No wasteful terminal wire.
Different inner diameter coil production only needs to change the
fixtures and winding program saved in the HMI.
Fully automated machine, one operator could manage 5-10 set machine
Product parameters
| Model | XT-FWY001 |
| Wire diameter | Min 0.3 x 0.5 mm , Max 4.0 x 14.0mm(Need to replace fixture) |
| Wire stack height | < 125 mm |
| Number of axis | 4 axis |
| Coil outer Diameter | 25-100 mm |
| Movement accuracy | 0.01mm |
| Controller | PLC |
| Power supply | AC 380V,50/60Hz |
| Power consumption | 6.5KW |
| Air pressure demand | > 0.4 Mpa |
| Machine dimensions | 2000(L) x 1550(W) x 2000(H) mm |
| Machine weight | 900kgs
|
Application
Photovoltaic field, automobile field, new energy field
Basic information about XINGTE
Experience
XINGTE was established in 2007, with more than 17 years R & D
experience in the coil winding area
Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more
than 30,000 square meters, which can ensure our Strong productivity
Service
XINGTE has more than 230 technical service and after-sales staff,
worldwide service points worry-free after-sales service
Patents & certificates
Patents & certificates:
XINGTE obtained 120+ Patents and related certificates
Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee
our Production capacity and fast delivery
Technology
XINGTE has more than 130 experienced engineers, which can ensure
our strong R & D ability, also can guarantee our customization
capability
XINGTE PRODUCTION LINE
1, Motor stator, rotor, and other related coil winding machine
2, Transformer-related product coil winding machine
3, voice coil-related product winding machine
4, inductor coil winding machine and
5, customized fully automatic line for the motor, speaker,
transformer production line
Pictures of workplace

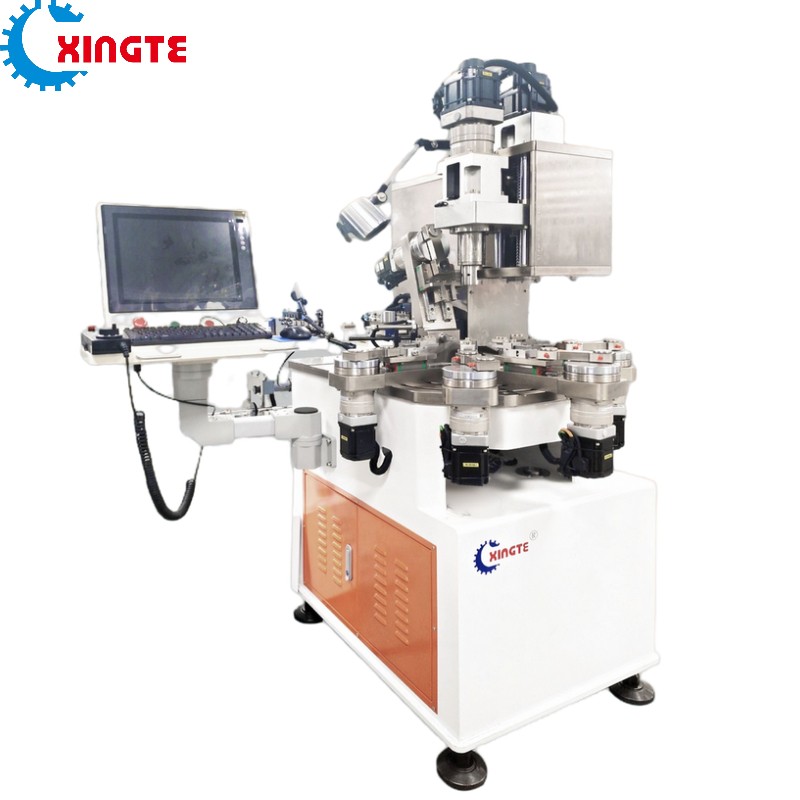

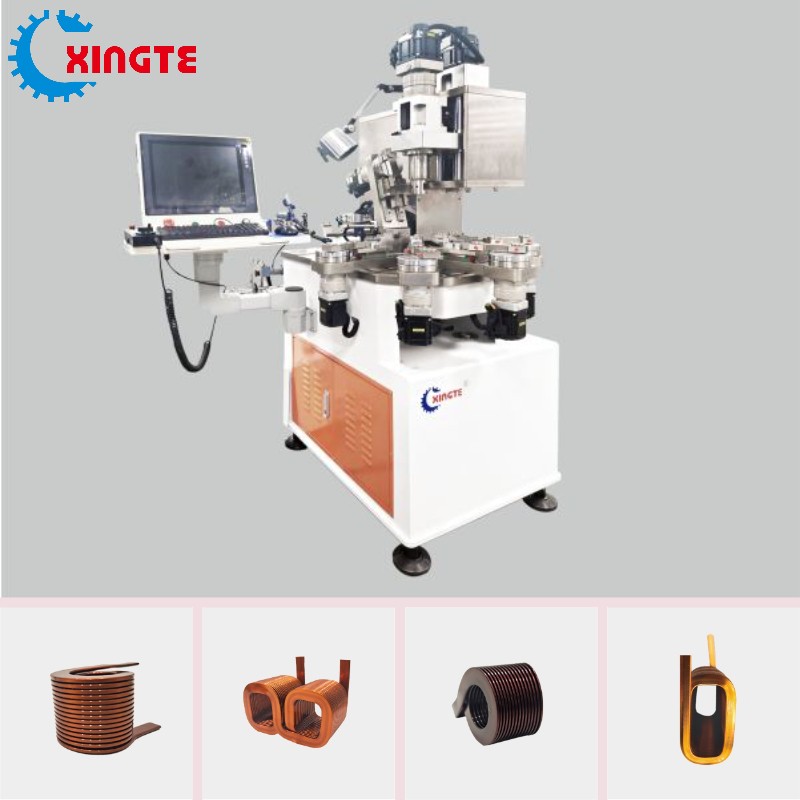

Pictures of machine
