Product Description:
XT-601SD is a specialized system designed for winding
large-diameter wire and coil. This stand-alone machine is fully
automatic and specifically designed for winding self-supporting air
coils. The wire used in this system is coated with thermoplastic
adhesive for an efficient and secure winding process.
During the winding process, the wire is heated by a hot air supply
as it is wound onto the coil. This facilitates the bonding of the
turns with the help of the adhesive. Once the winding is complete,
the finished coil is automatically ejected from the machine, making
it easy and efficient to use.
Product Features:
XT-601SD: The Ultimate Precision Coil Winding Machine
Designed for various air coil and bobbinless winding, the XT-601SD
is the perfect choice for precise and efficient winding.
With its high-precision ball screw guide, this machine ensures
perfect layer coil winding with mandrels, eliminating the need for
a slit groove wire guide.
The XT-601SD goes above and beyond by checking for any changes in
tooling flange position caused by thermal expansion and
automatically adjusting it to maintain consistent winding accuracy.
Equipped with special software for winding both even and uneven
numbers of turns per layer, and using an intermittent wire feed
mechanism, the XT-601SD guarantees reliable and flawless coil
winding every time.
Thanks to its new type of controller and pul-servo tension, this
machine achieves superior performance and stability for perfect
layer winding. Choose the XT-601SD for unmatched precision and
efficiency in coil winding.
Technical Parameters:
| Product Name | Air Coil Winding Machine |
|---|
| Power Supply | 220V/50Hz |
|---|
| Winding Direction | Clockwise/ Counterclockwise |
|---|
| Capacity | 500pcs/H |
|---|
| Machine Dimensions | 1180x800x1700mm |
|---|
| Wire Diameter Range | 0.06mm - 0.8mm |
|---|
| Lead Wire Length | 50-70mm |
|---|
| Product Type | Automatic Winding Machine |
|---|
| Yield Rate | ＞90% |
|---|
| Tension Control | Automatic Tension Control System |
|---|
| Coil Diameter Range | 10mm-200mm |
|---|
| Manufacturer | Air Coil Winding Machine Factory/Manufacturer |
|---|
Applications:
XT-601SD for Various Types of Coils
The XT-601SD is a versatile product that can be used for various
types of coils, including RFID coils, laser heads, voice coils,
magnet coils, sensor coils, vibrator coils, and pancake motor
coils. Whether you're working with small or large coils, this
device has got you covered.
No matter what your specific needs are, the XT-601SD has the
capability to wind coils with precision and efficiency. It is
designed to handle a wide range of coil sizes and materials, making
it a valuable tool for any project that involves coil winding.
With its advanced technology and user-friendly interface, the
XT-601SD is a reliable choice for winding coils. Its compact size
and lightweight design also make it easy to transport and use in
various settings.
Customization:
Air Coil Winding Machine Customization
Brand Name: XINGTE
Model Number: XT-601SD
Place of Origin: CHINA
Certification: CE,IOS9001,KC,ISO45001,ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-25 days
Payment Terms: LC,T/T
Supply Ability: 1500PCS/MONTH
Coil Curing Method: Preheat The Fixture To Dry
Winding Direction: Clockwise/ Counterclockwise
Capacity: 500pcs/H
Control System: PLC Touch Screen
Tension Control: Automatic Tension Control System

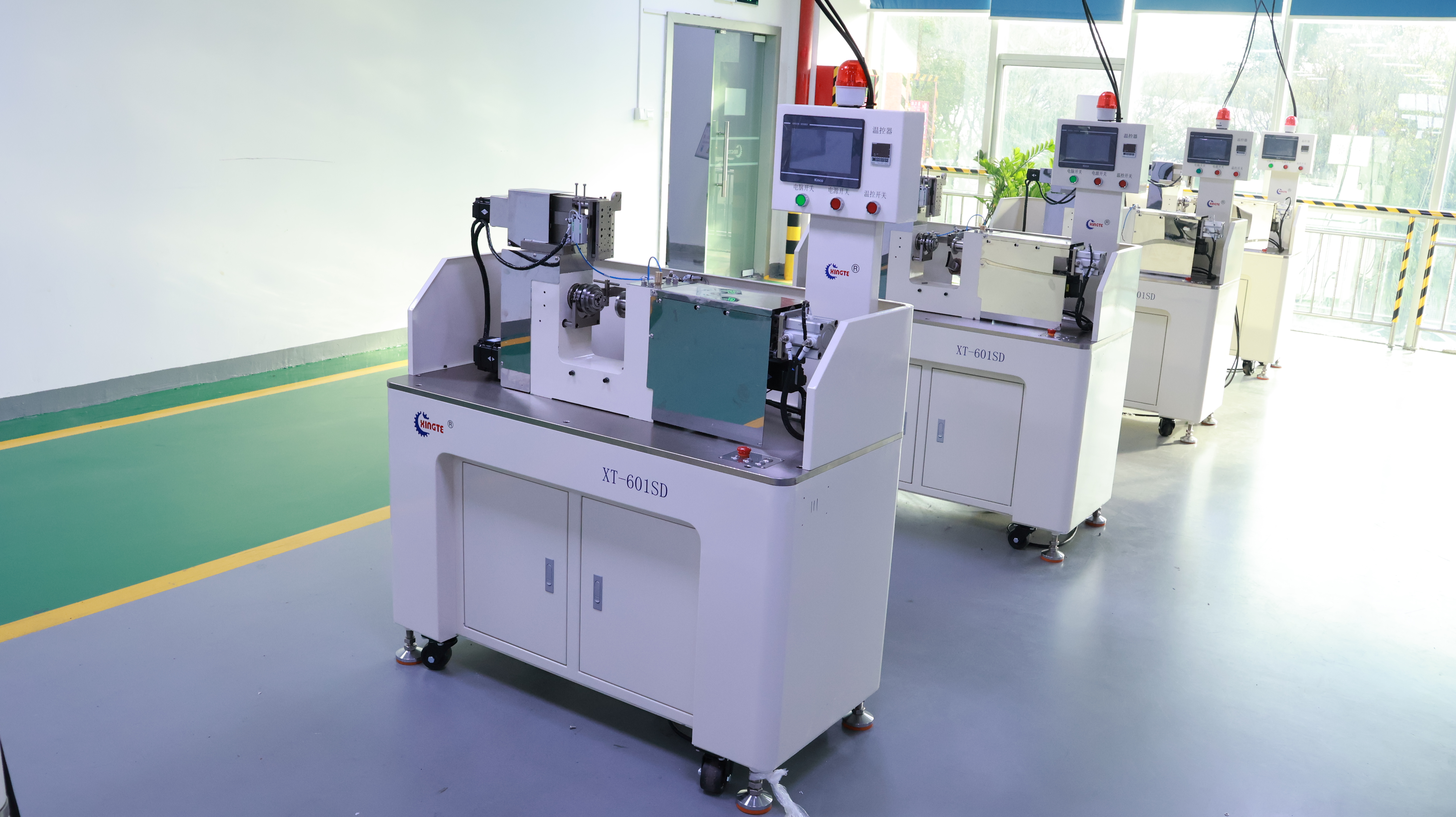

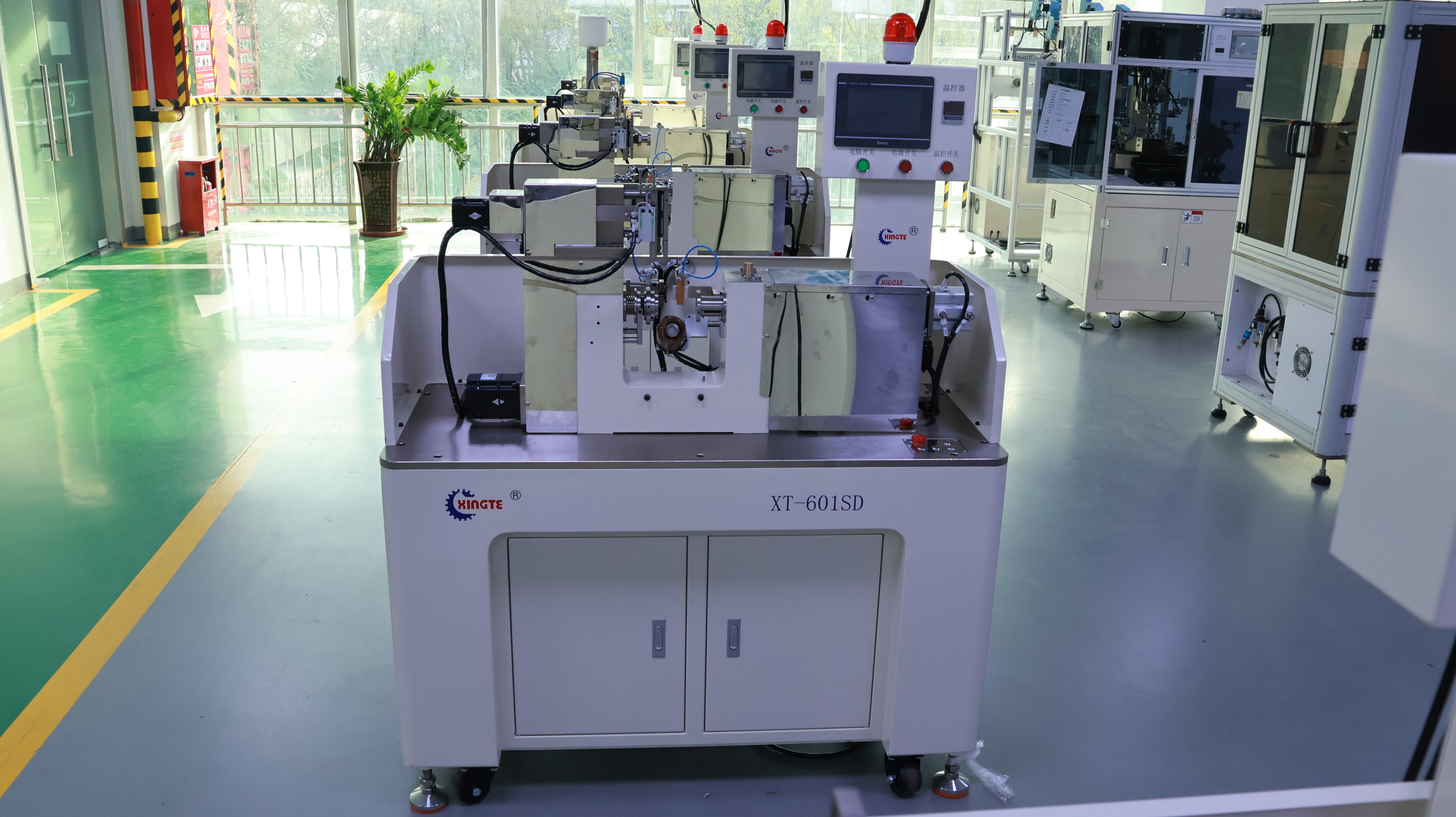

The real machine pictures
The finished coil samples
