Wire Diameter Range 0.06mm 0.8mm Air Coil Winding Machine with
Overload Protection
Product Description:
XT-601SD is specifically designed for large gauge wire and coil
applications. This stand-alone system is fully automated and is
capable of winding self-supporting air coils using wire coated with
thermoplastic adhesive. The wire is heated by a hot air supply
while being wound onto the coil, resulting in bonded turns. After
completion, the finished coil is ejected from the machine with the
help of tooling.
Product Features:
XT-601SD: The Ultimate Precision Coil Winding Machine
Introducing XT-601SD, the cutting-edge coil winding machine
designed specifically for air coils and bobbinless winding. With
its advanced features and high-performance capabilities, it's the
perfect solution for all your coil winding needs.
High-Precision Winding
One of the key highlights of XT-601SD is its ability to perform
perfect layer coil winding. This is made possible by the
utilization of a high-precision ball screw guide. With this
innovative feature, mandrels without a slit groove wire guide can
be used, ensuring precise and flawless winding every time.
Consistent Winding Accuracy
In addition to perfect layer winding, XT-601SD also has the ability
to check and adjust the tooling flange position caused by thermal
expansion. This ensures that the winding accuracy remains
consistent, regardless of any changes in temperature.
Intelligent Software for Perfect Winding
XT-601SD is equipped with special software that allows for both
even and uneven numbers of turns per layer, making it suitable for
a range of winding requirements. Paired with the intermittent wire
feed mechanism, this machine guarantees reliable and perfect layer
winding results.
The Next Generation Controller and Pul-Servo Tension
Unlike traditional coil winding machines, XT-601SD comes with a new
type of controller and pul-servo tension. This powerful combination
enables high performance and stability, resulting in flawless
perfect layer winding every time.
Technical Parameters:
Air Coil Winding Machine Technical Parameters
| Product Type | Automatic Winding Machine |
|---|
| Control System | PLC Touch Screen |
|---|
| Winding Direction | Clockwise/ Counterclockwise |
|---|
| Wire Diameter Range | 0.06mm - 0.8mm |
|---|
| Lead Wire Length | 50-70mm |
|---|
| Coil Curing Method | Preheat The Fixture To Dry |
|---|
| Application | RFID Coils, Laser Heads, Voice Coils, Magnet Coils, Sensor Coils,
Vibrator Coils, Pancake Motor Coils |
|---|
| Operate Rate | >85% |
|---|
| Yield Rate | >90% |
|---|
| Machine Dimensions | 1180x800x1700mm |
|---|
Applications:
XT-601SD for Various Coil Applications
The XT-601SD model is designed for use in a wide range of coil
applications, including:
- RFID coils
- Laser heads
- Voice coils
- Magnet coils
- Sensor coils
- Vibrator coils
- Pancake motor coils
With its versatile capabilities, the XT-601SD is the ideal choice
for all your coil needs.
Customization:
Air Coil Winding Machine Customization Service
Brand Name: XINGTE
Model Number: XT-601SD
Place of Origin: CHINA
Certification: CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-25 days
Payment Terms: LC, T/T
Supply Ability: 1500PCS/MONTH
Power Supply: 220V/50Hz
Lead Wire Length: 50-70mm
Product Type: Automatic Winding Machine
Control System: PLC Touch Screen
Wire Diameter Range: 0.06mm - 0.8mm
Our company, XINGTE, is a professional air coil winding machine
factory located in China. We offer high-quality and customizable
air coil winding machines with a variety of certifications
including CE, IOS9001, KC, ISO45001, and ISO24001. Our minimum
order quantity is 1 machine and prices are negotiable. We package
our machines in sturdy wooden cases to ensure safe delivery. Our
average delivery time is 15-25 days and we accept payment through
LC and T/T. With a supply ability of 1500PCS per month, we are able
to meet the demands of our clients.
The XT-601SD model is our latest and most advanced automatic
winding machine. It is equipped with a PLC touchscreen control
system, making it easy to operate and highly efficient. The machine
is suitable for a wire diameter range of 0.06mm to 0.8mm and has a
lead wire length of 50-70mm. With our custom service, we can tailor
the machine to meet your specific needs and requirements. Trust
XINGTE for all your air coil
winding machine needs.

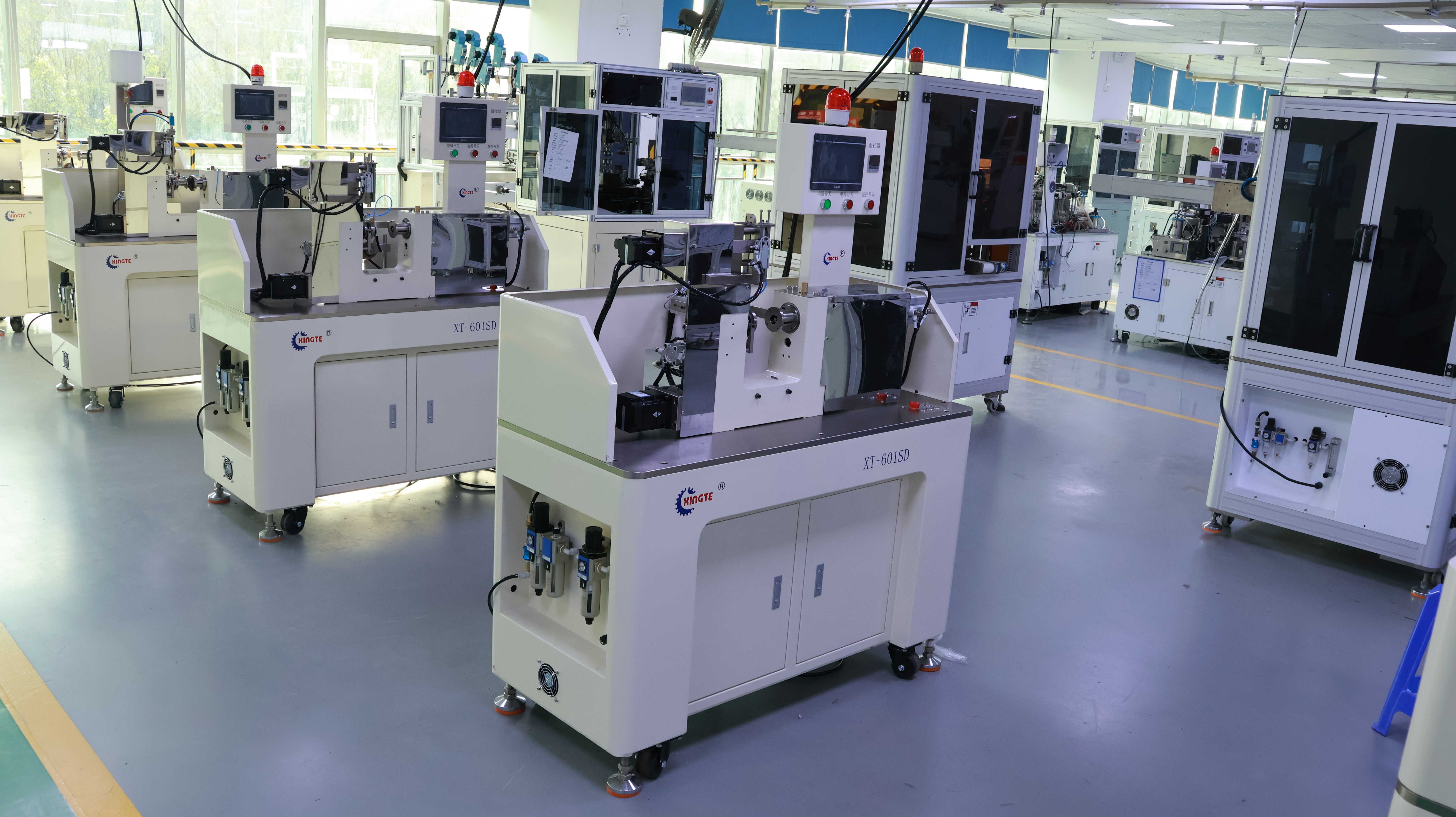

The machine samples
