Product Description:
An alpha coil, also known as a Α coil, is a coil shaped like the
Greek letter "α". It can be either a single-layer or double-layer
coil, made from the same wire. The coil is wound in a specific way,
first starting from the outside in and then from the inside out.
The two lead wires of the coil are located on the same side.
This machine is a newly designed winding machine specifically for
creating wireless charging transmitter coils. It is capable of
winding various types of materials such as silk-wrapped wire,
multi-strand wire, and single-strand wire. The addition of a
manipulator allows for cutting, whole line, and soldering in the
rear section, making it suitable for use in assembly line
operations. The body of the machine is made of cold iron, ensuring
stability and a sleek appearance.
The control system of the machine utilizes a touch screen
interface, making it user-friendly and easy to learn. Its
mechanical structure has been designed with precision, using
materials processed with special technology. The mechanical
movement part is equipped with imported servo motors and
high-precision ball screws, while the rotating part utilizes
imported bearings. This guarantees the machine's high efficiency
and accuracy in operation.
Features:
XT-605S
The XT-605S is a 5-axis servo controlled equipment that utilizes a
PLC system. It employs 100W servo motors for its XYZ axis,
providing strong power and quick response speed for fast and
accurate movements.
The precise tension control system ensures stable tension
throughout the operation, resulting in improved product quality.
The device is designed for easy operation and convenience with
simple high-level language commands and a 6" LCD screen for program
editing.
For increased safety and stability, the device comes with a
password storage function that prevents unauthorized access and
modifications to the program.
Its simple structure, easy control, and low risk of faults make it
easy to maintain, resulting in reduced maintenance costs.
With its excellent performance, user-friendly operation, and low
maintenance costs, the XT-605S is a highly cost-effective equipment
choice.

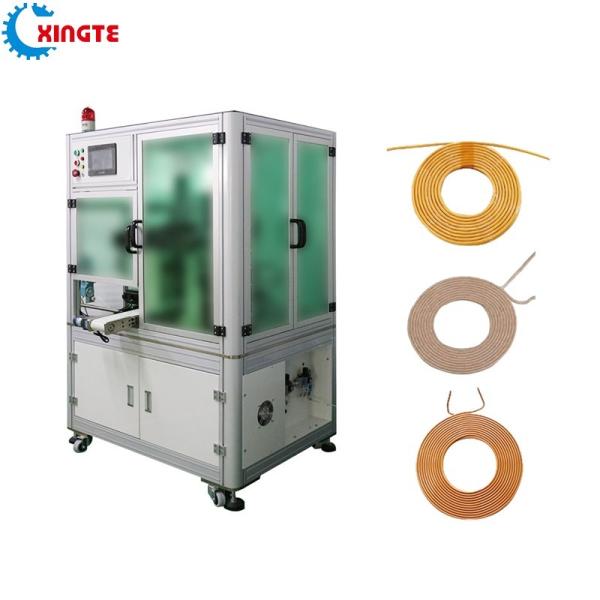

The pictures of our alpha coil winding machine
Technical Parameters:
| Product Type: | Automatic Winding Machine |
|---|
| Control System: | PLC Touch Screen |
|---|
| Machine Dimensions: | 1550x900x1720mm |
|---|
| Safety Features: | Emergency Stop Button, Overload Protection |
|---|
| Coil Diameter: | Max 60mm |
|---|
| Lead Wire Length: | 60-100mm |
|---|
| Coil Curing Method: | Preheat The Fixture To Dry |
|---|
| Application: | Wireless Charging Transmitter Coil Winding, Transformer Coil
Winding |
|---|
| Weight: | 360kgs |
|---|
| Wire Diameter Range: | 0.05mm - 2mm |
|---|
Key Words:
alpha coil winding machine manufacturer, alpha coil winding machine
factory, alpha coil winding machine exporter
Applications:
This machine is designed for winding coils, such as wireless
charger transmitter coils and transformer coils.
The finished alpha coil samples
Customization:
Customization Service for Air Coil Winding Machine
Brand Name: XINGTE
Model Number: XT-605S
Place of Origin: SHENZHEN
Certification: CE, ISO9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-35 days
Payment Terms: LC, T/T
Supply Ability: 1,000PCS/MONTH
Operate Rate: >85%
Winding Direction: Clockwise/Counterclockwise
Product Type: Automatic Winding Machine
Tension Control: Automatic Tension Control System
Wire Diameter Range: 0.05mm - 2mm
Key Features:
- Customizable for wireless charging transmitter
- Suitable for wireless charger coil winding machine
- High operate rate of over 85%
- Can wind in both clockwise and counterclockwise directions
- Equipped with automatic tension control system
- Supports wire diameter range from 0.05mm to 2mm
