Applicable Product Inductor Winding Machine For Perfect wire Layer
and 0.4 ~ 1.8mm wire diameter
Product Description:
Toroidal Inductor Winding Machines
A toroidal inductor winding machine is a specialized equipment used
to wind toroidal inductors, which are essential components for
various electric and electronic devices. These sophisticated
machines are specifically designed to ensure uniform distribution
and consistent quality of coils by precisely winding wire onto
toroidal cores.
The process involves transferring wire from a main spool to a
circular magazine and then unwinding it onto the magnetic core. The
winding heads of these machines come in various sizes and
selections to meet different requirements for coil and wire sizes.
These machines may also include features such as interchangeable
magazines, automatic tape cut-off, and speed controls for loading
and wrapping.
This intricately controlled process is crucial for the production
of high-quality toroidal inductors used in a wide range of
applications such as current transformers, potential transformers,
power transformers, and inductors.
Xingte - Your Trusted Source for Toroidal Winding Machines
Xingte is one of the leading companies that offer a line of
user-friendly toroidal winding machines specifically designed for
various applications - from the simplest to the most challenging.
Our machines are equipped with advanced PLC systems, making
operation and handling much more comfortable and efficient.
In addition to their advanced features, Xingte's toroidal winding
machines are highly sought after for their unique solutions for
irregular coil applications. We also offer customized winding
machines capable of handling various core and wire sizes, providing
tailored solutions for your specific needs.
Experience Efficient and Precise Production with Our Toroidal
Winding Machines
In summary, our toroidal inductor winding machines play a critical
role in the efficient and precise production of toroidal inductors,
providing advanced solutions and capabilities for various
industrial and electronic applications. Choose Xingte as your
trusted source for high-quality and reliable toroidal winding
machines.
Features:
Automatic Magnetic Ring Winding Machine for Butterfly-Type Winding
Method
This fully automatic magnetic ring winding machine is specifically
designed for the butterfly-type winding method used in the
production of magnetic rings.
Automatic Operation for Maximum Efficiency
Featuring automatic core uploading, wire feeding, winding, and
unloading, this machine streamlines the entire winding process for
optimal efficiency.
Dual Working Station Design for Faster Winding
The dual working station design of this machine greatly improves
the winding speed, making it a valuable asset for any production
line.
Precision and Versatility
With the ability to perform single layer, two layers reciprocating,
and three layers of wiring, this machine ensures precise winding
and high efficiency.
Compatible with a Wide Range of Wire Diameter
From 0.4mm to 1.8mm, this machine is compatible with a wide range
of wire diameters, making it a versatile choice for various
applications.
Fully Automated and Easy to Operate
With its fully automated features, this machine can be operated by
a single person, allowing for multiple machines to be run at once
for maximum output.
Automatic Material Shortage Detection
In case of a shortage of materials, such as magnetic core or copper
wire, the machine will automatically stop, ensuring smooth and
uninterrupted production.
Flexible Material Compatibility
This machine is compatible with various materials including
amorphous, iron powder core, iron-silicon-aluminum, copper wire,
and aluminum wire.
Adjustable Speed and Easy Specification Changes
The speed of this machine is easily adjustable and its
specifications can be quickly changed, allowing for efficient
production and adaptation to various production needs.
Technical Parameters:
| Product Name | Inductor Winding Machine |
|---|
| Manufacturer | Inductor Winding Machine Manufacturers |
|---|
| Type | Automatic |
|---|
| Control System | PLC |
|---|
| Frequency | 50Hz |
|---|
| Speed | 0.6-1.2s/turn |
|---|
| Air Pressure | 0.4-0.6Mpa |
|---|
| Voltage | 220V |
|---|
| Applicable Product | Common Mode Chokes |
|---|
| Coil I.D | >8mm |
|---|
| Coil O.D | 13-50mm |
|---|
| G. W | 700kgs |
|---|

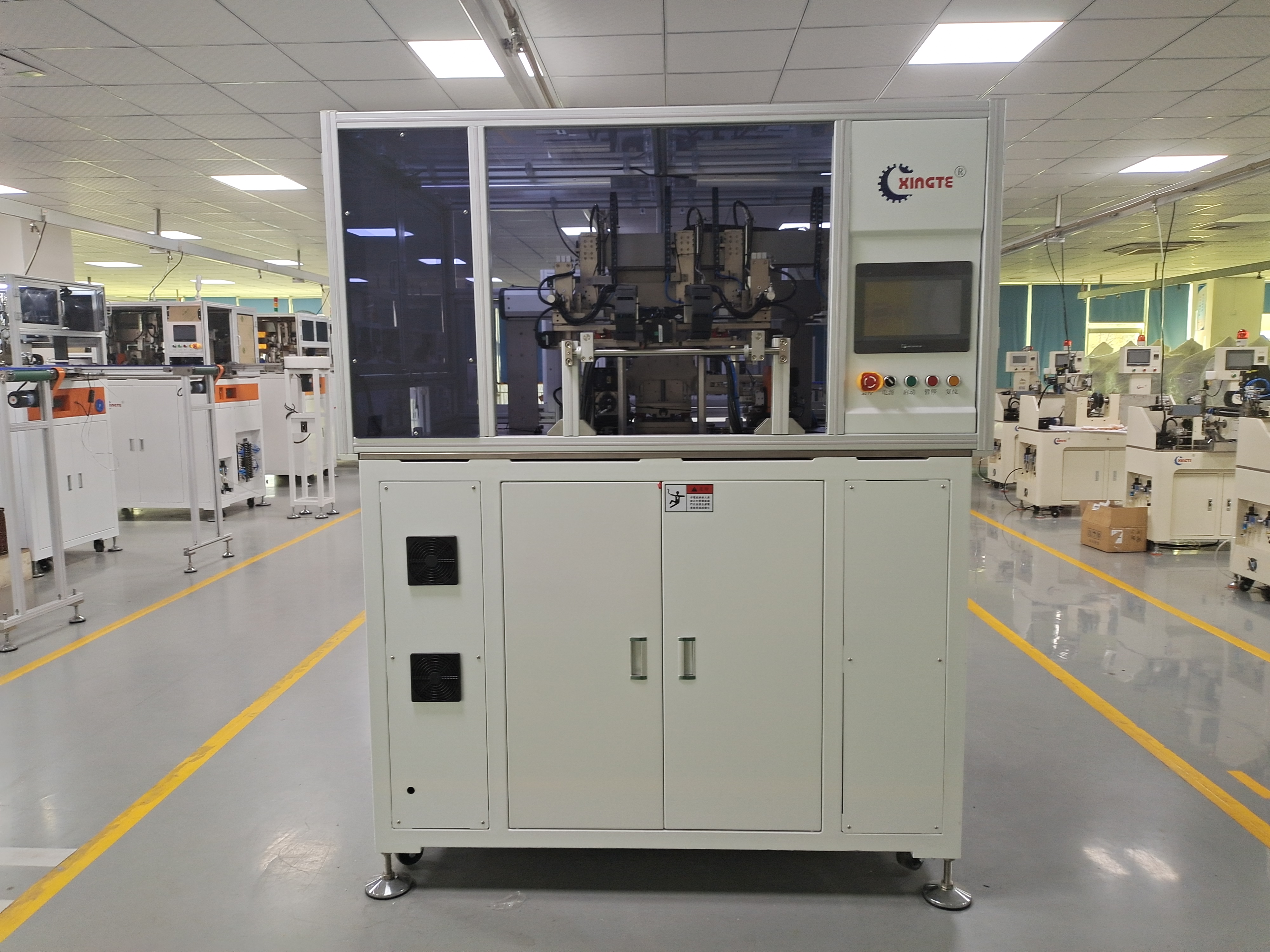

The pictures of our toroidal inductor winding machine
Applications:
Toroidal Inductor Winding Machines
Toroidal inductor winding machines have a wide range of
applications in various industries. These machines are commonly
used to manufacture both common mode and differential mode
inductors.
Common mode inductors
Common mode inductors are used in a variety of household
appliances, such as refrigerators, washing machines, cameras, video
recorders, and color TVs. They are also found in AC frequency
modulators, faxes, and power supplies. With the help of toroidal
inductor winding machines, these inductors can be efficiently
produced and integrated into these appliances.
Differential mode inductors
Differential mode inductors are essential components in
communication, electronic, automotive, and medical industries.
These inductors can be found in devices such as smartphones,
computers, cars, and medical equipment. Toroidal inductor winding
machines play a crucial role in the production of these inductors,
ensuring their precise and reliable performance.
The toroidal inductor coil pictures
Customization:
Inductor Winding Machine - Customized Service
Brand Name: XINGTE
Model Number: XT-CHHD002
Place of Origin: SHENZHEN
Certification: CE,IOS9001,KC,ISO45001,ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-35 days
Payment Terms: LC,T/T
Supply Ability: 1.000PCS/MONTH
Wire length: 100-2800mm
Frequency: 50Hz
Control system: PLC
Wire Diameter: 0.4 ~ 1.8mm
G. W: 700kgs
Are you in need of an automatic coil winding machine for inductors?
Look no further than XINGTE's XT-CHHD002 model. Our inductor
winding machine is designed to meet your specific requirements and
provide high-quality, efficient performance.
As one of the leading inductor winding machine manufacturers, we
take pride in offering customized services to our clients. Our
XT-CHHD002 model is perfect for toroidal inductor coil winding,
with a wire length range of 100-2800mm and a frequency of 50Hz.
With our advanced control system, using a PLC, you can expect
precise and accurate winding every time. Our machine can handle
wire diameters ranging from 0.4 to 1.8mm, making it suitable for a
variety of inductor sizes.
We understand the importance of quality and reliability in a
winding machine, which is why we have obtained certifications such
as CE, ISO9001, KC, ISO45001, and ISO24001. Our minimum order
quantity is 1, and we offer competitive pricing and flexible
payment terms.
To ensure safe delivery, our inductor winding machines are packaged
in wooden cases. Our delivery time ranges from 15-35 days, and we
have a supply ability of 1,000PCS per month. Trust XINGTE for all
your inductor winding needs.
