Product Description:
This equipment is a single-axis automatic winding machine
independently developed and produced by XINGTE for wireless
charging transmitter and receiver coil winding.
This machine integrates mechanical, electronic, and pneumatic
technologies into one, and is relatively advanced in level.
It can reliably realize automated winding of coil products, making
it one of the most efficient models in the industry.
Features:
The control system of this equipment uses a user-friendly
touchscreen interface, which is entirely in English.
The metal materials utilized in this equipment have undergone
special treatments to prolong its lifespan.
The mechanical movement of this equipment is driven by imported
servo motors and high-precision ball screws.
Safety is a top priority for the design of this machine, ensuring a
secure operation environment.
Once powered on, this equipment can run continuously for 24 hours
with stable and efficient production.
It boasts strong compatibility and can easily integrate into fully
automated production lines and unmanned workshops.
Technical Parameters:
| Model | XT-601ST |
| Wire diameter | 0.03-0.3mm |
| Coil stack height | ≤ 5mm |
| Coil outer diameter | ≤ 50mm ( can customized) |
| Yield rate | 99.8% |
| Lead wire length | 20-50mm ( can customized) |
| Power supply | AC220V,50/60Hz |
| Capacity | 120 pcs/ H |
| Power | 4Kw |
| Air supply | Min. 0.6MPa |
| Machine dimensions | 1150(L)x1400(W)x1,820(H)mm |
| Machine weight | Approx.420kgs
|
| Safety Features | Emergency Stop Button, Overload Protection |
| Coil Curing Method | Preheat The Fixture To Dry |
Applications:
Application Areas
Wireless charging technology has been gaining popularity in recent
years, and its application areas continue to expand. This
technology involves the transfer of electrical energy through
electromagnetic induction, eliminating the need for physical wires
and connectors. It offers convenience and flexibility for a variety
of devices and can be found in a wide range of products and
industries.
One of the main components of wireless charging is the receiver
coil, which is responsible for receiving the electromagnetic energy
from the transmitter coil. The receiver coil is often designed with
multiple strands to increase its efficiency and improve energy
transfer. This allows for a more reliable and faster charging
process.
On the other hand, the transmitter coil is responsible for
generating the electromagnetic field that transfers energy to the
receiver coil. It can come in various sizes and shapes depending on
the application and device it is being used for. Overall, these
different types of coils work together to create a seamless and
efficient wireless charging experience.
Customization:
XINGTE - Customized Air Coil Winding Machine
Brand Name: XINGTE
Model Number: XT-601ST
Place of Origin: CHINA
Certification: CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-35 days
Payment Terms: LC/TT
Supply Ability: 2000PCS/MONTH
Power Supply: 220V/50Hz Or 110V/60Hz
Product Type: Automatic Winding Machine
Tension Control: Automatic Tension Control System
Wire Diameter Range: 0.025mm - 0.5mm
Spindle rotating Speed: Adjustable, Up To 4800 Rpm
Customized Service for Air Coil Winding Machine
Our XT-601ST Air Coil Winding Machine is designed to meet your
specific needs and requirements. With our customized service, we
ensure that our machine is tailored to your unique production
process and specifications.
Key Benefits
- Efficient and precise winding for wireless charger transmitter
coils
- Wide range of wire diameter capabilities (0.025mm - 0.5mm)
- Adjustable spindle rotating speed (up to 4800 Rpm)
- Automatic tension control system for consistent winding tension
- CE, IOS9001, KC, ISO45001, ISO24001 certified for quality assurance
Customization Options
Our customized service for the XT-601ST Air Coil Winding Machine
includes:
- Adjustable power supply (220V/50Hz or 110V/60Hz) to meet your local
requirements
- Customized packaging options, such as wooden cases, for safe
transportation
- Flexible delivery time (15-35 days) to accommodate your production
schedule
- Various payment terms (LC/TT) for your convenience
- Increased or decreased minimum order quantity (MOQ) based on your
production needs
With our customized service, you can be confident that our air coil
winding machine will meet your specific needs and help you achieve
efficient and precise production of wireless charger transmitter
coils.
Pictures of our factory

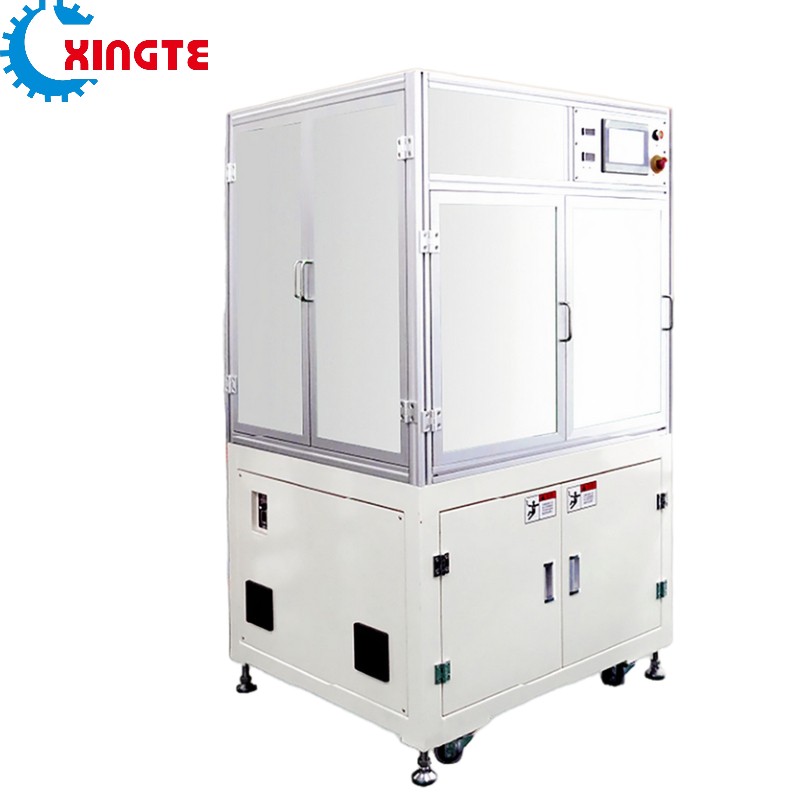

Our machines samples

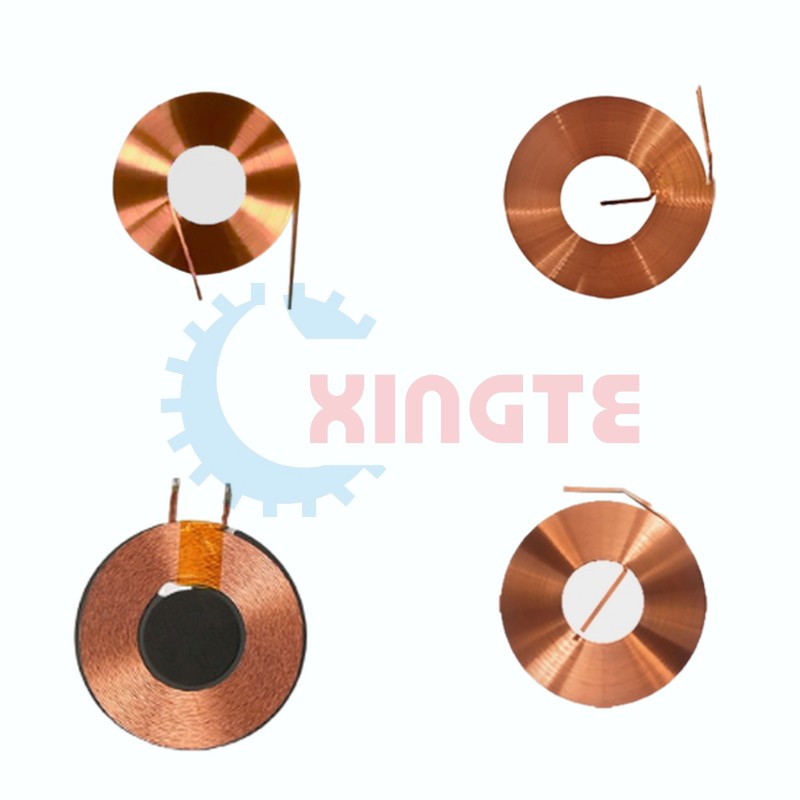

Coil samples of the wireless charger
