six working stations automatic flyer stator coil winding machine for electric motor

Product feature

It adopts 10-inch PLC control system, language is English.

It can remember multiple groups of parameters at the same time,6 Stators could be wound at the same time.

the winding coil is neat and the number of turns is an accurate, simple operation, saves labor；

Machine automatic winding, automatic Turning, automatic line arrangement, automatic clipping；

Winding using tungsten steel wire tip, enameled wire loss to a minimum；

Mold can be quickly replaced, change the product you can only change the mold.

Simultaneous high-speed winding of 6 stators, each flyer winding speed can reach 1000rpm, total reach 6000RPM

High-speed winding and precise lineup at the same time,4-36 slots infinitely changeable

The number of turns can be more than 500 turns

The equipment's chassis adopts 8mm square tube welding technology to ensure stable high-speed operation.

Product parameters

Basic information about XINGTE

Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area

Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity

Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service

Patents & certificates

Patents & certificates:
XINGTE obtained 120+ Patents and related certificates

Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery

Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability


XINGTE PRODUCTION LINE

1, Motor stator, rotor, and other related coil winding machine

2, Transformer-related product coil winding machine

3, voice coil-related product winding machine

4, inductor coil winding machine and

5, customized fully automatic line for the motor, speaker, transformer production line

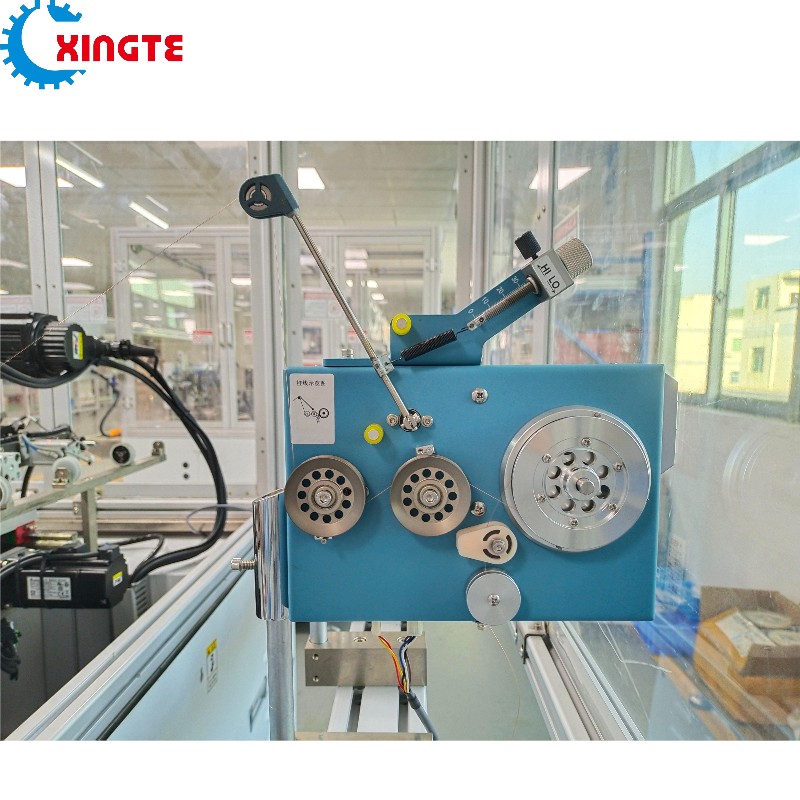

Pictures of machine

The stator samples

Our factory

Order process

Shenzhen Xingte Technology Co., Ltd. was founded in 2011. It is a national high-tech enterprise with more than 1.000 employees and a factory area of 30,000 square meters. Xingte specializes in the research and development, production, sales, and technical services of fully automatic winding machines and winding systems. Xingte currently has an R&D team of more than 260 people and a high-quality after-sales service team of more than 400 people.

Xingte obtained more than 200 invention patents, utility model patents, software copyrights, and other certificates like CE, KC, etc. Xingte is a member unit of the Shenzhen Camera Industry Association and a governing unit of the Robot Intelligent Equipment Industry Association. The company has an independent machining center, complete production supporting equipment, and controllable product manufacturing costs and quality. The entire product production process adopts information management. Effectively manage production factors and implement the 6S (sorting, reorganizing, sweeping, cleaning, quality, and safety) on-site management concept within the company. Continuously improved the company's quality management to enhance customer satisfaction, and obtained ISO9001 quality management system certification.

The company's products are mainly used in mobile phones, computers, headphones, wireless charging, photovoltaics, new energy vehicles, electronic components, and other fields. Specializing in providing various types of speaker voice coil winding machines, motor winding machines, wireless charging coil winding machines, toroidal magnetic winding machines, new energy intelligent equipment, air core coil winding machines, transformer winding machines, and the middle and rear sections of magnetic rings Assembly lines and other production equipment as well as fully automatic speaker assembly equipment!

Our products are exported to all over the world such as Southeast Asia and European and American countries, South Korea, Singapore, Vietnam, Philippines, Turkey, etc. It has widely served well-known domestic and world brands such as Huawei, Apple, Samsung, and Xiaomi, and has been unanimously recognized by customers.

Our Vision: To be the global leader in coil winding and related equipment manufacturing

Our Mission: Create value and a better life for customers

Our values:Customer-centric: win-win cooperation, faster and better, Staff-oriented: emphasizing both ability and integrity and continuous optimization
