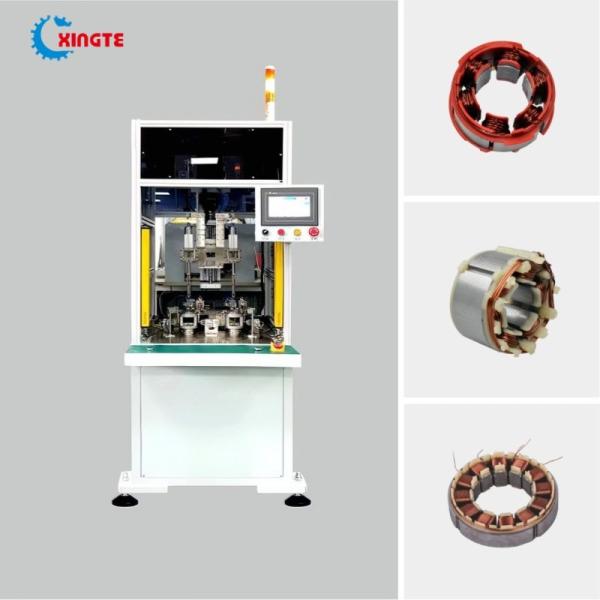

    Precise Dual Station Washing Machine Motor Winding Machine 1200RPM

    Ask Lasest Price
    Brand Name : XINGTE
    Model Number : XT-02D
    Certification : CE,IOS9001,KC,ISO45001,ISO24001
    Price : negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 2.000 sets per year
    Delivery Time : 30-40 working days
    • Product Details
    • Company Profile

    Precise Dual Station Washing Machine Motor Winding Machine 1200RPM

    Precise Dual Station Coil Winding Machine for Washing Machine Motor Stator, washing machine stator coil winding machine


    Product Introduction :

    The Precise Dual Station Coil Winding Machine for Washing Machine Motor Stator, washing machine stator coil winding machine is used for automating the engineering of washing machine electric motors. It adopts needle coil winding technology and is suitable for large and medium brushless motor multi-shaped slot stators, such as those used in drum washing machines, turbo washing machines, and water pump motors. The machine features a single working station structure and can automatically complete the winding process, ensuring high efficiency and safety.


    The BLDC stator winding machine offers complete programming freedom, so you can decide where to anchor the initial starting wire before winding, whether to run the cycle clockwise or anticlockwise, and all the necessary position changes to complete the process.
    Application

    The BLDC stator winding machine is used for Large and medium Special-shaped slot electric motor stator coil winding, such as drum washing machine, turbo washing machine and water pump motor, BLDC, brushless DC motor, etc.




    Demonstration of spindle and needle indexing
    The stator is stationary during winding. All needle movements are motorized and programmable and managed in direct drive mode (no cam system, no belts, no lead screw).






    Precise Dual Station Washing Machine Motor Winding Machine 1200RPM

    It is possible to wind:

    • Inner straight slot stators
    • Inner skewed slot stators
    • Outer stators straight and skewed slot

    Product parameters

    Model number:

    XT-02D
    Wire Diameter :0.1 ~ Ø1.6mm
    Stator Outer diameter:

    Max 106mm

    Stator inner diameter:

    10mm

    Stator stack thickness :

    150mm

    Winding method:needle winding
    Winding station:2 stations
    Power:

    6KW

    Power supply:

    AC380V,50/60Hz

    Air pressure:

    > 0.6Mpa

    Winding speed:

    1200Rpm

    Machine dimension:

    (L)1500 *(W)680*(H)1990 mm

    G. W:

    600KGS




    XINGTE PRODUCT Range

    1, Motor stator, rotor, and other related coil winding machine

    2, Transformer-related product coil winding machine

    3, voice coil-related product winding machine

    4, inductor coil winding machine and

    5, customized fully automatic line for the motor, speaker, transformer production line
