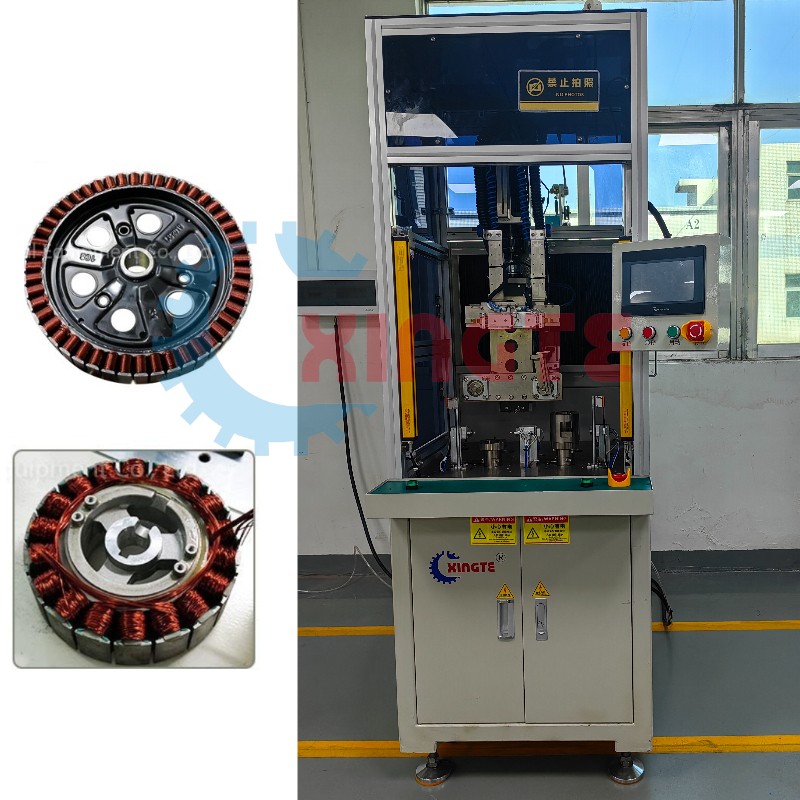

    XT-02D Automated Double Nozzle Stator Winding Machine For Precision Coil Winding

    Ask Lasest Price
    Brand Name : XINGTE
    Model Number : XT-02D
    Certification : CE,IOS9001,KC,ISO45001,ISO24001
    Price : negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 2.000 sets per year
    Delivery Time : 30-40 working days
    • Product Details
    • Company Profile

    XT-02D Automated Double Nozzle Stator Winding Machine For Precision Coil Winding

    XT-02D Automatic Double Stator Nozzle Winding Machine For Precision Coil Winding


    The stator Nozzle coil winding machine's main overview


    Advanced Fibre Optic Sensors system is combined with AC servo motor drive system for precise positioning.


    Intuitive and simple operation, with 10" HMI to edit programs in dialogue mode, easy to use.


    High precise tensioner to assure of winding quality.


    Automatic pin wrapping & residual wire removal system.


    50 sets of programs can be stored, and program switching is fast.


    Hierarchical management and password storage function to prevent non-related


    Main Features

    • Flexibility (internal and external rotor)
    • Multi-parts winding at the same time
    • Freely programmable
    • Wire layering
    • Freely programmable contacting/wire termination (teach process)
    • High filling factors despite required space for needle
    • Large wire diameter range
    • Freely selectable wire connections even on the lower side of the stator
    • Low tooling costs

    Applications

    • Pump drives
    • Fans
    • Power steering, servo motors
    • various brushless motors
    • Professional food processors
    • Professional power tools
    • Coolant pumps
    • Heating pumps
    • Vacuum pumps
    • Oil pumps
    • Roller shutter drives
    • Wheelchair drives
    • Dental drill

    Demonstration of spindle and needle indexing

    The stator is stationary during winding. All Nozzle movements are motorized and programmable and managed in direct drive mode (no cam system, no belts, no lead screw).


    XT-02D Automated Double Nozzle Stator Winding Machine For Precision Coil Winding

    It is possible to wind:

    • Inner straight slot stators
    • Inner skewed slot stators
    • Outer stators straight and skewed slot

    Product parameters


    Model number:

    XT-02D
    Wire Diameter :0.1 ~ Ø1.6mm
    Stator Outer diameter:

    Max 106mm

    Stator inner diameter:

    10mm

    Stator stack thickness :

    150mm

    Winding method:needle winding
    Winding station:2 stations
    Power:

    6KW

    Power supply:

    AC380V,50/60Hz

    Air pressure:

    > 0.6Mpa

    Winding speed:

    1200Rpm

    Machine dimension:

    (L)1500 *(W)680*(H)1990 mm

    G. W:

    600KGS
