Product Description:
This toroidal transformer winding machine is specifically designed
for winding multi-turn thin wires coils. It greatly reduces labor
costs and enables fully automatic processes including loading,
on-line operations, rewinding, and unloading. With the ability to
operate 24 hours a day without downtime, production efficiency is
increased. The transformer equipment production process includes
automatic wire feeding, winding, and unloading, allowing for 360
degree winding.
Product Features:
Stable pulling force for damage-free winding
The winding process requires a stable pulling force to ensure the
wire is wound smoothly and without any damage. The inner diameter
of the winding should be small, and the winding speed should be
fast for efficient production.
Versatile winding capabilities
This method of winding is suitable for a variety of products,
especially ones with small diameters and many turns. Examples
include primary and secondary windings of small toroidal
transformers, primary windings of high-power toroidal transformers,
and transformer coils.
Adjustable wire storage for different sizes
The wire storage ring can be replaced with different widths on the
same model, allowing for flexibility in wire storage capacity and
inner diameter for varying product sizes. This makes it ideal for a
wider range of applications.
Compatible with various wire types
This winding technique is suitable for various types of wire,
including enameled copper wire, enameled aluminum wire, steel wire,
nylon wire, and more. This versatility allows for coil processing
in different industries and applications.
Technical Parameters:
Automatic Toroidal Transformer Coil Winding Machine Technical
Specifications
| Product Type | Sensor Coils, Transformer Coils, And Leakage Protector Coils |
|---|
| Cycle Time | 2-4S/Pc |
|---|
| Dimensions | 900*1150*2000mm |
|---|
| Certification | CE, IOS9001, KC, ISO45001, ISO24001 |
|---|
| Control Method | Automatic |
|---|
| Winding Direction | Clockwise/ Counterclockwise |
|---|
| Wire Diameter | 0.07~0.4mm |
|---|
| Type | Automatic |
|---|
| Coil Diameter | 10~30mm |
|---|
| Air Pressure | 0.4-0.6Mpa |
|---|
Applications:
Mainly used in various electronic products, power supplies,
household appliances, automotive electronics, industrial control
and other fields, magnetic rings with multiple turns of fine wire
have become an essential component for products such as sensor
coils, transformer coils, and leakage protector coils.
These coils, also known as winding coils, are designed to create a
magnetic field when an electric current passes through them. This
magnetic field can then be used to detect, transform, or regulate
the flow of electricity within the product.
In the highly technical world of electronics, the precise and
intricate design of magnetic rings is crucial for the proper
functioning of many devices. As a result, these coils are carefully
crafted using advanced techniques to ensure their reliability and
efficiency.
Whether in the form of a small sensor coil or a larger transformer
coil, magnetic rings play a significant role in the performance of
electronic products, making them an indispensable element for
modern technology.
Customization:
Automatic Toroidal Transformer Coil Winding Machine - XT-HGQ05J
Customized Service provided by XINGTE
Brand Name: XINGTE
Model Number: XT-HGQ05J
Place of Origin: Shenzhen
Certification: CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 10-25 working days
Payment Terms: LC, T/T
Supply Ability: 2000PCS/MONTH
Air Pressure: 0.4-0.6Mpa
Power: 3KW
Winding Direction: Clockwise/Counterclockwise
Type: Automatic
Are you looking for an efficient and reliable solution for toroidal
transformer coil winding? Look no further than XINGTE Transformer
Winding Machine. Our XT-HGQ05J model is designed to meet your
specific needs and requirements.
With our customized service, we offer a tailored solution for your
toroidal transformer winding needs. Our machine is equipped with
advanced technology and high-quality components to ensure precise
and efficient winding every time.
Don't settle for a one-size-fits-all solution. Let XINGTE provide
you with a customized toroidal transformer coil winding machine
that meets your unique specifications. Contact us now to discuss
your requirements and get a quote.
Pictures of Xing factory

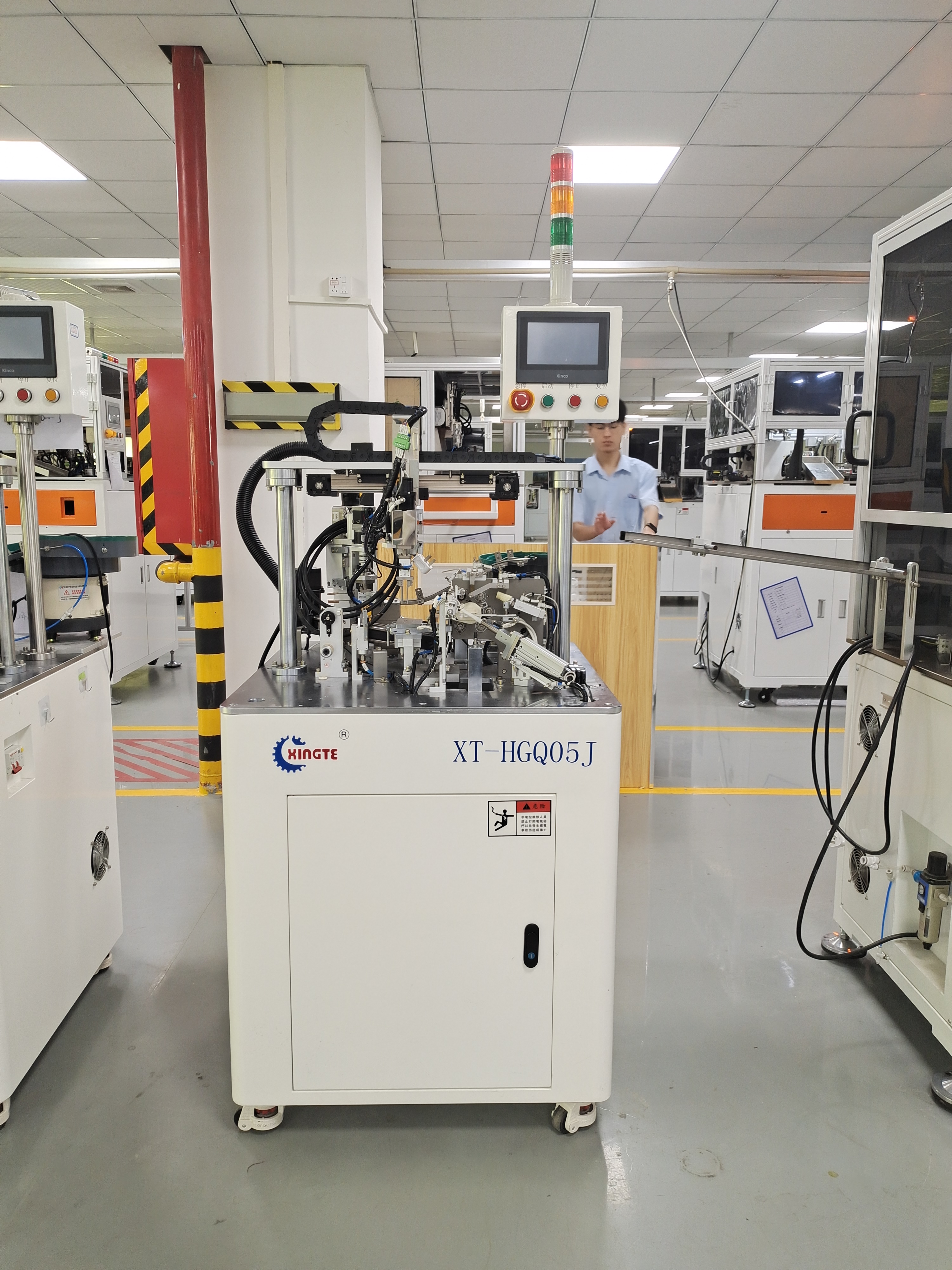

Pictures of the machines
The transformer coil samples
