Product Description:

This machine is designed for winding products with 12 spindles. It has advanced features such as automatic bobbin loading and tape wrapping, making it a efficient and easy-to-use option for winding processes. The material unloading is also fully automated, increasing productivity and reducing labor.

It can be used for anti-winding Pin products, making it versatile and adaptable to different types of winding tasks. The thread nozzle frame can also be rotated 90 degrees in the opposite direction, offering flexibility in winding patterns. Its compact and space-saving design, along with its ultra-high speed capabilities, make it a highly efficient and powerful winding machine.

One of the standout features of this machine is its novel appearance design, which not only adds to its aesthetic appeal, but also makes it highly functional and efficient. The machine is designed for easy operation, with simple controls and convenient maintenance, ensuring smooth and hassle-free operation.

The programming of this machine is also user-friendly, allowing for the use of a computer or touch screen for programming, making it easy to switch between Chinese and English displays. This feature makes it a suitable option for international use and eliminates any potential language barriers.

Precision Tape Counter-Tension Control and Automatic Line Clamping

The unique joint fixture design of this machine incorporates a precision tape counter-tension control tensioner, ensuring that the product line is neatly arranged and preventing any potential tangling. It also has automatic line clamping, which not only saves winding time, but also has the additional function of wire breakage and waste wire elimination, further increasing efficiency and productivity.

• The 12-spindle winding machine has a maximum shaft spacing of 70mm, making it suitable for winding larger coils such as contactors, power relays, and synchronous motors.
• Equipped with a programming touch screen controller with easy-to-understand English display for flexible selection.
• Customizable fixture allows for easy replacement of winding fixtures.
• Features a wear-resistant synchronous belt for high-speed rotation and lower noise.
• User-friendly interface makes it simple for even novice operators to use the machine.
• Built with a strong and durable construction for longevity and reliability.
• Made from high-quality cast iron, ensuring resistance to wear and tear.
• Comes with a built-in safety feature that automatically stops the machine in case of malfunction.
• Has a password saving function to prevent unauthorized modifications to the program.
• Includes automatic wire clamping, wire breakage, and waste wire removal functions for improved work efficiency.

Technical Parameters:

The machine pictures

Applications:

This machine has diverse applications in various industries, including white goods, communications, industrial power supply, medical, aerospace, military, and consumer electronics. It is commonly used for the production of relays, current contactors, solenoid coils, telecommunications transformers, small power transformers, signal transformers, inductors, and filter choke coils.

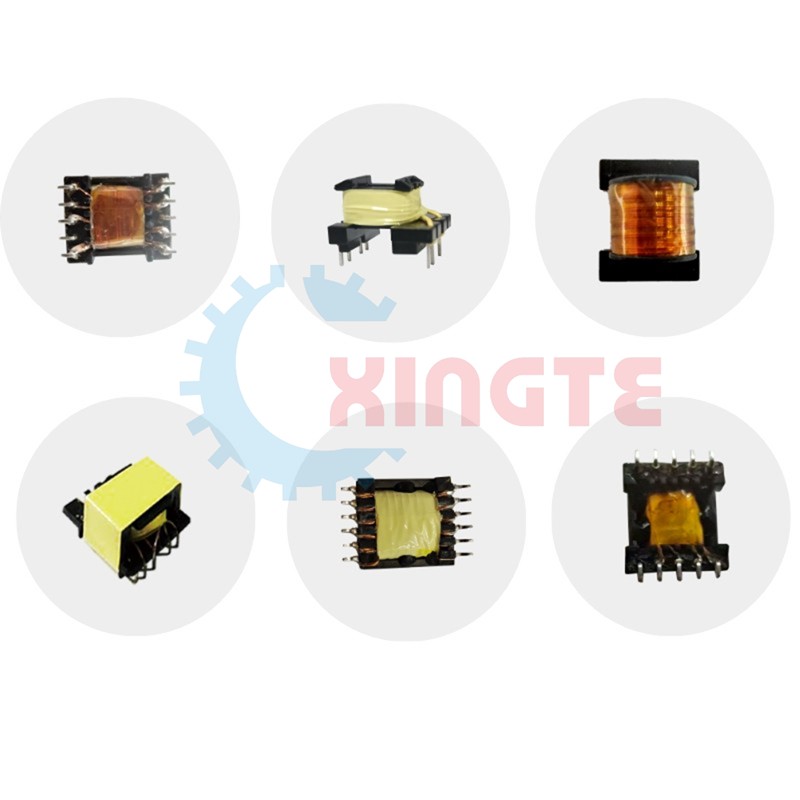

The coil samples for reference

Customization:

Certification: CE, IOS9001, KC, ISO45001, ISO24001

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Wooden case

Delivery Time: 10-25 working days

Payment Terms: LC, T/T

Supply Ability: 2000PCS/MONTH

Operation Voltage: 220v 50/60HZ

Model: XT-TW1270

Wire Diameter: 0.03-0.7mm

Spindle Pitch: 70mm

Cycle Time: 30S

Introducing XINGTE's Transformer Winding Machine - a high precision and high efficiency bobbin coil winding machine. As a leading transformer winding machine manufacturer with years of experience, we offer customized services to meet our customers' specific needs.

Our machine is equipped with CE, ISO9001, KC, ISO45001, and ISO24001 certifications, ensuring its quality and safety. With a minimum order quantity of 1, we provide flexible payment terms to negotiate the price. The machine is carefully packaged in a wooden case for secure transportation and can be delivered within 10-25 working days.

With a large production capacity of 2000PCS per month, our transformer winding machine is suitable for various industries. It has a wide wire diameter range of 0.03-0.7mm and a spindle pitch of 70mm, making it versatile for different winding needs. Its compact design allows it to save space and operate smoothly.

Our machine is known for its stable operation and reliable performance, ensuring high-quality winding results. We also provide professional technical support and after-sales service to ensure customer satisfaction. Choose XINGTE's Transformer Winding Machine for efficient and precise winding solutions.
