12 stations automatic transformer coil winding machine, high
precision coil winding machine for transformer XT-TW1270
Product Features
This device is a multi-axis winding machine with automatic Bobbin
loading. Once winding is completed on the spindle, the
tape-wrapping mechanism performs the wrapping action and then
automatically unloads.
It is capable of reverse winding Pin products, and the thread
nozzle frame can be flipped 90 degrees in the opposite direction.
It possesses features such as ultra-high speed, miniaturization,
and space-saving.
This machine showcases a novel appearance design, simple operation,
and convenient maintenance. Programming can be done using a
computer or touch screen. The unique joint fixture design and the
adoption of precision tape counter-tension control tensioner ensure
the product line is neatly arranged. Additionally, it offers
automatic wire clamping and wire cutting, saving winding time.
The advantage of Xingte twelve stations transformer coil winding
machine
The 12-station Automatic Transformer Winding Machine offers
numerous advantages for businesses in the transformer manufacturing
industry. Here are some of the positive features that make this
machine stand out:
1. High Precision Winding: The machine offers highly accurate
winding, which minimizes the waste of materials and reduces the
costs of the production process. It also ensures that the end
products meet the required specifications and quality standards.
2. Increased Efficiency: The twelve-station Automatic Transformer
Winding Machine comes with eight 12 stations, making it very
efficient and fast. It can handle multiple operations
simultaneously, reducing production time and increasing output.
3. Easy to Operate: With an intuitive interface and user-friendly
controls, the machine is easy to operate, saving the business time
and effort. It also requires minimum maintenance, which ensures
cost efficiency and productivity.
4. Versatile: The twelve-station Automatic Transformer Winding
Machine can handle a wide range of materials and can be programmed
to create various winding patterns. This versatility makes it
suitable for different products and applications.
5. Improved Safety: The machine comes with built-in safety features
that protect operators from accidents and hazards. This ensures
that the workplace is safer and more secure for employees.
In conclusion, The twelve-station Automatic Skeleton Bobbin
Transformer Winding Machine is a valuable investment for businesses
in the transformer manufacturing industry. Its precision,
efficiency, ease of use, versatility, and safety features make it a
reliable and cost-effective solution for winding transformers.
Product parameters
Model number: | XT-TW1270 |
Wire Diameter : | 0.07 ~ 0.7mm( can customized) |
Number of spindles | 12 spindles |
Axis pitch | 50/70mm |
Yield rate | ＞ 98% |
Utilization rate | ＞85% |
Power: | 6KW |
Power supply: | AC 220V,50/60Hz |
Air pressure: | > 0.6Mpa |
Machine dimension: | 1630*1400*1800mm |
G. W: | 850KGS |
Application areas
Xingte Transformers winding machine, Small Transformers, and custom
wound coil solutions can be found in such applications and
industries as military/defense transformers, Defense Industry,
Rail, Electric Utility, Marine and Medical industries
Basic information about XINGTE
Experience
XINGTE was established in 2007, with more than 17 years R & D
experience in the coil winding area
Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more
than 30,000 square meters, which can ensure our Strong productivity
Service
XINGTE has more than 230 technical service and after-sales staff,
worldwide service points worry-free after-sales service
Patents & certificates
Patents & certificates:
XINGTE obtained 120+ Patents and related certificates
Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee
our Production capacity and fast delivery
Technology
XINGTE has more than 130 experienced engineers, which can ensure
our strong R & D ability, also can guarantee our customization
capability
XINGTE PRODUCTION LINE
1, Motor stator, rotor, and other related coil winding machine
2, Transformer-related product coil winding machine
3, voice coil-related product winding machine
4, inductor coil winding machine and
5, customized fully automatic line for the motor, speaker,
transformer production line
Our Machine
Our factory

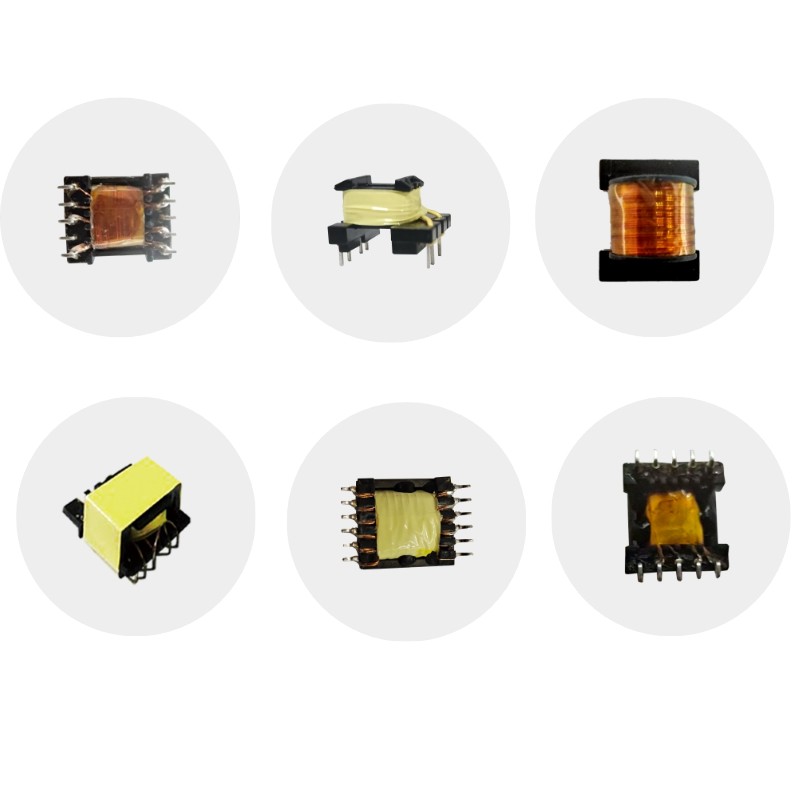

Finished product
