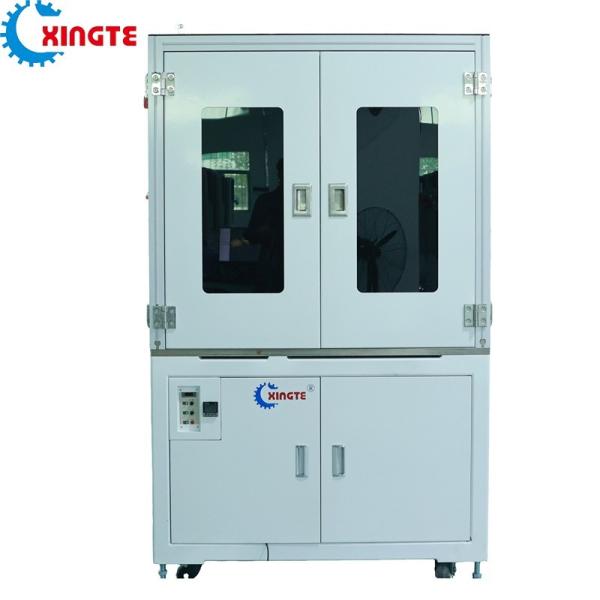

Automatic T-core Integrated Inductor Winding Machines are mainly
used in Smartphones, smart wearables, automotive industry
Xingte T-core winding machine is used for coil winding in the
inductor production line. The XT-M01 winding machine adopts a
high-speed winding mode integrating optical PLC automation. The
T-core winding machine has high precision, high speed, The
advantage of high yield.
T-core Integrated Inductor Winding Machines Features:
Multi-model matching:
T-core winding machines can be matched with a variety of assembly
line production machines including
1210/1608/2012/2016/2520/0303/0404, and can be customized for
matching.
High stability:
The T-core winding machine uses purely imported hardware to ensure
product operation stability and has a yield rate of 99.9% and an
operation rate of 2.8~4s, effectively ensuring the stability and
reliability of production.
Multiple styles of winding:
The T-core winding machine is different from conventional coil
winding machines. It adopts a switchable time winding unit, which
can perform vertical winding/horizontal winding, even/odd turns,
round wire/flat wire and other forms.
The advantages of high precision, high speed, high yield, and high
quality can effectively help customers improve stable production
capacity.
Feeding: The vibrating plate is used to realize fully automatic
feeding, and the plate is designed with automatic screening and
scrap removal functions;
Wire feeding: It adopts digital display adjustable automatic wire
feeding tensioner to monitor the wire feeding tension in real time,
and the system controls the tension range to provide guarantee for
winding;

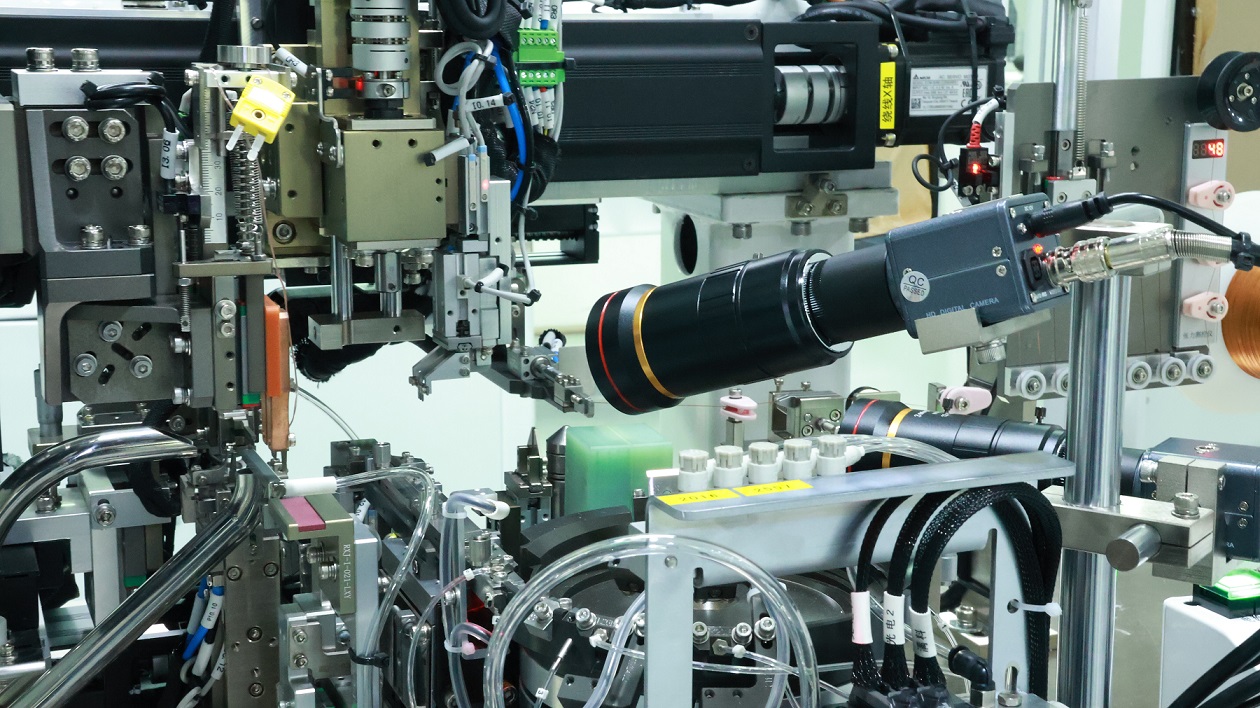

Wire winding molding: Independently developed integrated modules
for picking up materials, clamping wires, and winding wires. The
two axes are wound at the same time. It can also be wound with
different numbers of turns according to different products or
different copper wires;
Cutting and spot welding: independently developed integrated module
for turning, cutting and spot welding, easy to adjust,
corresponding positions and parameters can be adjusted according to
different products
Applications
This production line is used for manufacturing T-core type
small-size molded inductors, which can be applied to computers,
smartphones, smart wearables, automobiles, and other fields.
Applicable product type,1608, 2012,2016, 2520, 3225 type
Product parameters
Model number:
| XT-M01 |
Feeding method
| vibrate plate |
control method
| PLC bus control |
Machine cycle time
| 2-5S/Pc |
Application field
| Smartphones, smart wearables, cars |
Yield rate
| ＞ 99% |
Operating Rate
| ＞85% |
Power:
| 3KW |
Power supply:
| AC 220V,50/60Hz |
Air pressure:
| 0.4-0.6Mpa |
Machine dimension:
| 1125*850*1900mm |
G. W:
| 400KGS |
