Product Description:
Armature Winding Machines: Enhancing Efficiency and Quality in
Manufacturing Armatures
Armature winding machines are integral equipment utilized in the
production and manufacturing of armatures. These vital components
are used in electric motors, generators, and transformers, making
armature winding machines essential in various industries. Not only
do they contribute significantly to production efficiency, but they
also play a crucial role in ensuring the quality of armatures.
Designed with advanced features, armature winding machines offer
unrivaled precision and adaptability. These machines feature gear
runs in an oil bath, providing protection and extending their
lifespan. Moreover, they come equipped with digital revolution
counters, ensuring accurate winding processes. Another notable
feature is the ability to wind with two or three wires in parallel,
increasing productivity and reducing production time.
One of the most impressive characteristics of modern armature
winding machines is their tooling adjustability. It allows for the
winding of straight and skewed slots, highlighting their precision
and adaptability. With this feature, armature winding machines can
cater to the specific needs and requirements of different armature
designs.
Armature winding machines are an essential part of not only the
manufacturing sector but also a wide range of industries. They are
used in the production of automotive, household electrical
appliances, industrial machinery, medical equipment, and OA/AV
equipment. This wide application of armature winding machines
showcases their versatility and capability to cater to various
industries and their specific needs.
In conclusion, armature winding machines are vital equipment that
greatly contributes to the production efficiency and quality of
armatures. With their advanced features, precision, and
adaptability to various industries, they play a crucial role in
enhancing the overall performance of these essential components.
Product Features
Featuring advanced technology and efficient design, our machine
offers a range of features to enhance productivity and product
quality.
1. High Speed and Efficiency
The machine is equipped with a motion controller, ensuring fast
speed and high efficiency.
2. Six-Station Automatic Winding
Our machine can handle six stations for automatic winding, wiring,
and slot changing, streamlining the process for maximum efficiency.
3. Precision Ball Screw for Neat and Consistent Winding
The precision ball screw used for wiring ensures that the winding
is neat, tight, and consistent, resulting in improved product
quality.
4. Improved Production Efficiency and Reduced Wire Consumption
With its efficient design and advanced technology, our machine
effectively improves production efficiency and reduces wire
consumption, leading to cost savings and improved product quality.
5. Stable and Reliable Construction
The machine features a cast iron body and sheet metal frame,
providing a stable and reliable foundation for consistent and
efficient operation.
6. Easy Operation with English Touchscreen Interface
Our machine's English touchscreen interface offers easy operation
and can even memorize multiple sets of parameters for added
convenience. Additionally, optional features such as pneumatic
scissors, electronic tensioner, and servo tensioner can be included
for further customization.
Technical Parameters:
| Product Name: DC Armature Winding Machine | Condition: New |
|---|
| Number of Working Station | Six Stations |
| Weight | Approx 700kgs |
| Machine Size | 1200x1600x1800mm |
| Winding Mode | Six Flyer |
| Armature | Even Number Slot Rotor |
| Winding Heads | 6 |
| Air Pressure | 0.4-0.6Mpa |
| Rotor Outer Diameter | 30mm |
| Control System | Touch Screen |
Applications:
The armature rotor winding machine is a versatile and crucial tool
in the manufacturing process of small DC and AC motors. It is
widely used for the production of various household appliances like
grinders, dishwashers, crushers, soya-bean milk makers, cooking
machines, coffee makers, juicers, vacuum cleaners, mites, sweeping
robots, hair ball trimmers, electric razors, electric toothbrushes,
razors, hair clippers, cleansing instruments, egg beaters,
household purifiers, and more.

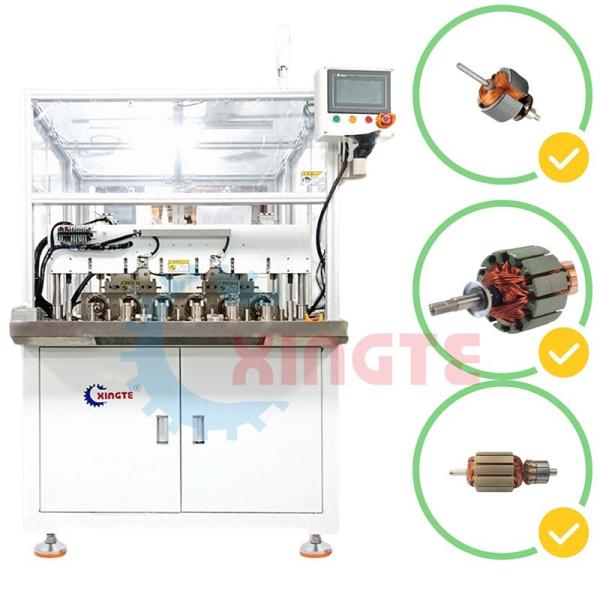

The rotor armature pictures
Customization Service for XINGTE XT-F06D Armature Winding Machine
Product Description:
The XINGTE XT-F06D Armature Winding Machine is a high-quality and
efficient machine designed for armature winding in DC machines. It
is suitable for winding even number slot rotors with a rotor outer
diameter of 30mm. This machine is perfect for various applications,
such as ceiling fan armature winding and automatic mixer armature
winding.
Product Attributes:
- Brand Name: XINGTE
- Model Number: XT-F06D
- Place of Origin: Shenzhen
- Certification: CE,IOS9001,KC,ISO45001,ISO24001
- Minimum Order Quantity: 1
- Price: Negotiate
- Packaging Details: Wooden case
- Delivery Time: 15-25 days
- Payment Terms: LC,T/T
- Supply Ability: 1,500 PCS/MONTH
- Winding Mode: Six Flyer
- Condition: New
- Rotor Outer Diameter: 30mm
- Armature: Even Number Slot Rotor
- Winding Heads: 6
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is XINGTE. - Q: What is the model number of this product?
A: The model number of this product is XT-F06D. - Q: Where is this product manufactured?
A: This product is manufactured in Shenzhen. - Q: What certifications does this product have?
A: This product has CE, IOS9001, KC, ISO45001, and ISO24001
certifications. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
