Product Description:
Armature winding machines are vital pieces of equipment utilized in
the manufacture and assembly of armatures. These armatures are
essential components in electric motors, generators, and
transformers. As such, the efficiency and accuracy of these
machines greatly impact the overall production quality of
armatures.
These machines are specifically designed with advanced features to
ensure optimal performance. They are equipped with gears that run
in an oil bath, providing protection and increasing durability. In
addition, digital revolution counters are incorporated to ensure
precise and accurate winding. These cutting-edge machines also have
the capability to wind with two or three wires in parallel,
allowing for efficient and versatile production.
Furthermore, modern armature winding machines offer adjustable
tooling for straight and skewed slot winding, highlighting their
precision and versatility. These state-of-the-art machines are
utilized in various industries, including automotive, household
appliances, industrial manufacturing, medical equipment, and OA/AV
equipment. This wide range of application showcases the essential
role of armature winding machines in producing high-quality and
efficient products for different industries.
Product Features
The advanced motion controller of this machine ensures fast speed
and high efficiency, making it perfect for your production needs.
With automatic winding, wiring, and slot changing, the process is
completely hands-free and improves overall productivity.
The precision ball screw used for wiring ensures neat, tight, and
consistent winding, resulting in high-quality products. This also
helps in reducing wire consumption and is an efficient way to
improve the quality of your products.
The machine is built with a combination of cast iron body and a
sheet metal frame, making it sturdy and reliable for long-term
usage. Its stable structure ensures smooth operation and minimal
downtime.
The English touchscreen interface allows for easy operation and can
store multiple sets of parameters, making it highly convenient for
use. As an added feature, you can also choose from optional
pneumatic scissors, electronic tensioner, or servo tensioner to
meet your specific needs.
Technical Parameters:
| Product Name | Automatic Armature Winding Machine |
|---|
| Winding Heads | 6 |
|---|
| Powder | AC 380V, 50/60Hz |
|---|
| Condition | New |
|---|
| Control System | Touch Screen |
|---|
| Machine Size | 1200x1600x1800mm |
|---|
| Rotor Outer Diameter | 30mm |
|---|
| Total Power | 7kW |
|---|
| Winding Mode | Six Flyer |
|---|
| Air Pressure | 0.4-0.6Mpa |
|---|
| Wire Range | 0.05-0.5mm |
|---|
| Key Features | Automatic Armature Winding Machine, drill machine armature winding |
|---|

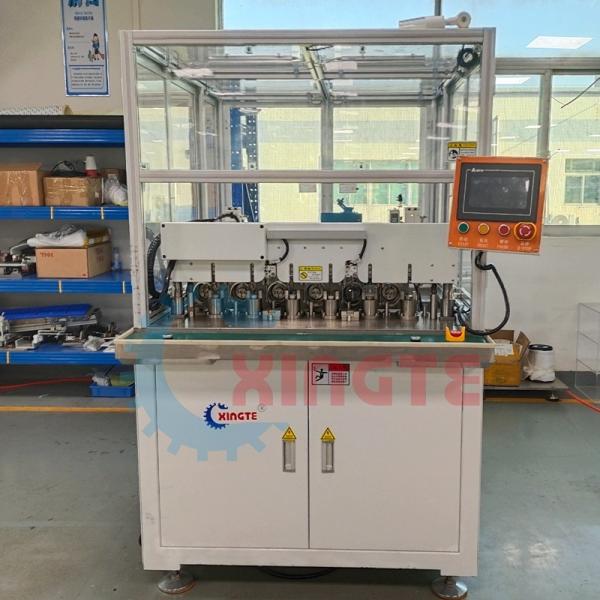

The pictures of our machines
Applications:
Introduction to Armature Rotor Winding Machine
The armature rotor winding machine is a specialized equipment used
for the production of small DC and AC motors. These motors are
commonly found in household appliances such as grinders,
dishwashers, crushers, coffee makers, and more. They also play a
crucial role in devices like soya-bean milk makers, cooking
machines, juicers, vacuum cleaners, mites, sweeping robots,
electric razors, and toothbrushes.
The armature rotor winding machine is also used in the
manufacturing of other household tools and appliances, including
hair ball trimmers, hair clippers, cleansing instruments, egg
beaters, and household purifiers. With its precise winding
capabilities, this machine helps to ensure the efficient and
reliable operation of these devices.
The rotor armature pictures
Customization:
Armature Winding Machine - XT-F06D
Brand Name: XINGTE
Model Number: XT-F06D
Place of Origin: Shenzhen
Certification: CE,IOS9001,KC,ISO45001,ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-25 days
Payment Terms: LC,T/T
Supply Ability: 1,500 PCS/MONTH
Winding Heads: 6
Weight: Approx 700kgs
Control System: Touch Screen
Wire Range: 0.05-0.5mm
Stack Height: Max 40mm
Customized Service for Armature Winding Machine
Are you looking for a reliable and efficient solution for armature
winding in DC machines? Look no further than XINGTE's XT-F06D
Automatic Armature Winding Machine. Our machine is designed for
precision winding of armatures in a wide range of DC machines,
providing high productivity and quality results.
With our customized service, you can have your XT-F06D tailor-made
to your specific needs and requirements. Our team of experts will
work closely with you to design and produce a machine that meets
your exact specifications, ensuring maximum efficiency and
cost-effectiveness.
We understand that every customer has unique needs and preferences,
which is why we offer a range of customizable features for our
Armature Winding Machine. You can choose the number of winding
heads, control system, wire range, and stack height to suit your
specific application.
Our Armature Winding Machine is built with high-quality materials
and advanced technology, ensuring durability and long-term
performance. It is also certified with CE, IOS9001, KC, ISO45001,
and ISO24001, guaranteeing its safety and reliability.
Ordering our customized service is easy and hassle-free. With a
minimum order quantity of 1, you can negotiate the price and
delivery time to suit your needs. Our packaging is done with a
wooden case for secure transportation, and we accept various
payment terms, including LC and T/T.
Don't settle for a one-size-fits-all solution when it comes to
armature winding. Choose XINGTE's XT-F06D Automatic Armature
Winding Machine and experience the efficiency and precision of our
customized service. Contact us now to learn more about our
customization options and secure your machine today.
