Product Description:
Armature winding machines are essential equipment utilized in the
manufacturing and production of armatures, which are vital
components in electric motors, generators, and transformers. These
machines play an integral role in enhancing both the production
efficiency and quality of armature components.
Designed with advanced features such as gear run in an oil bath for
additional protection, digital revolution counters for increased
accuracy, and the ability to wind with multiple wires in parallel,
these machines are highly adaptable and precise in their function.
They also offer tooling adjustments for both straight and skewed
slots, further emphasizing their precision and versatility in
modern armature winding processes.
Moreover, armature winding machines cater to a diverse range of
industries, including automotive, household electrical appliances,
industrial, medical equipment, and OA/AV equipment. With their
advanced technology and efficient production capabilities, these
machines are crucial in meeting the demands of various industries
and sustaining their continuous growth.
Product Features
The following are the features of our product:
- The machine is equipped with a motion controller, ensuring high
speed and efficiency.
- Six-station automatic winding, automatic wiring, and automatic slot
changing for increased productivity.
- Precision ball screw for wiring, resulting in neat, tight, and
consistent winding.
- Improved production efficiency and reduced wire consumption,
leading to a higher quality product.
- Stable and reliable machine with a Cast iron body and sheet metal
frame.
- English touchscreen interface for easy operation and the ability to
memorize multiple sets of parameters.
- Optional pneumatic scissors, electronic tensioner, or servo
tensioner.
Technical Parameters:
| Ceiling Fan Armature Winding Machine | |
|---|
| Armature Winding Machine | |
| Six Station Armature Winding Machine | |
| Air Pressure | 0.4-0.6Mpa |
| Total Power | 7kW |
| Control System | Touch Screen |
| Machine Size | 1200x1600x1800mm |
| Number of Working Station | Six Stations |
| Stack Height | Max 40mm |
| Weight | Approx 700kgs |
| Wire Range | 0.05-0.5mm |
| Winding Heads | 6 |
| Winding Mode | Six Flyer |

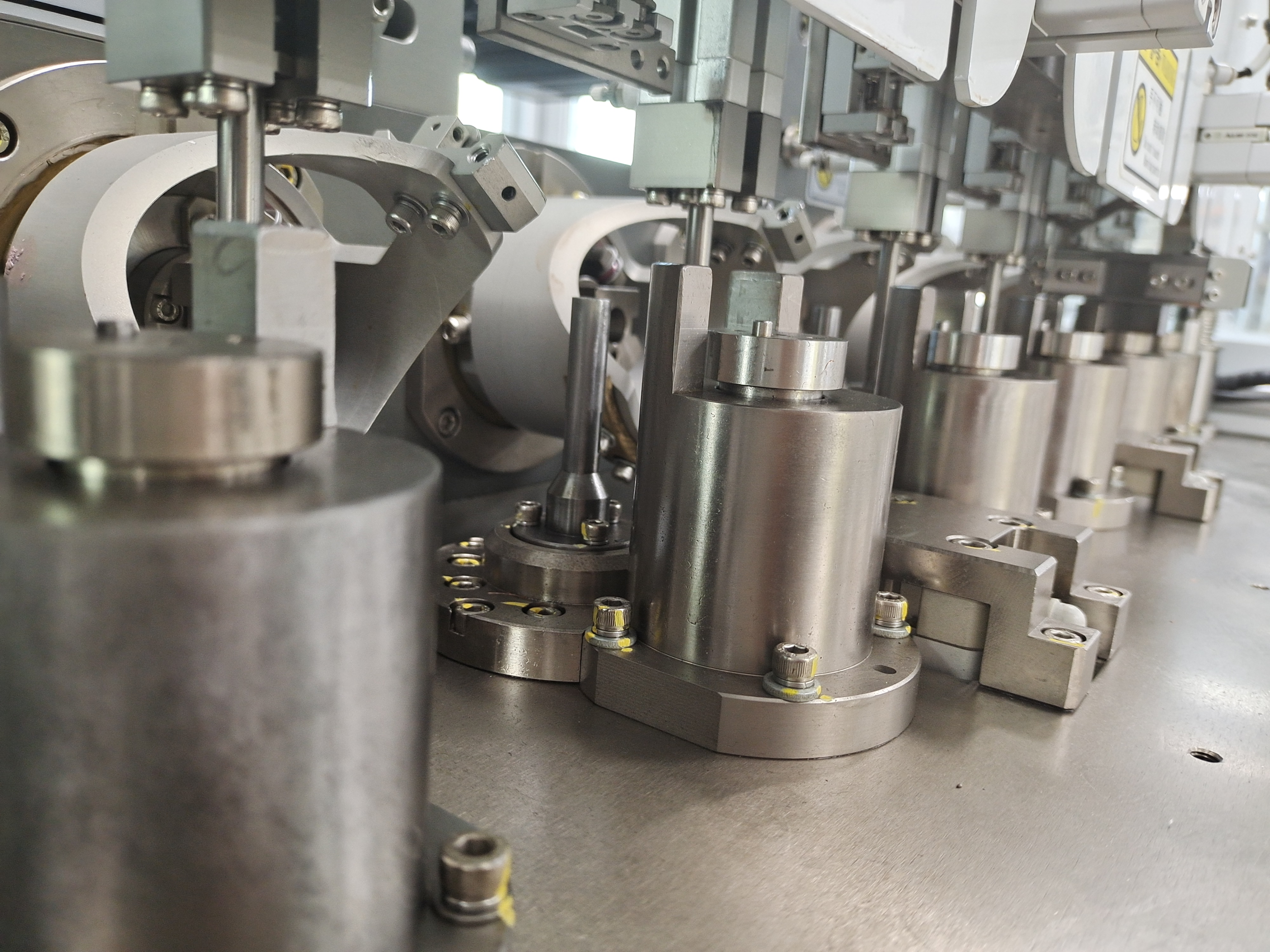

Machine pictures
Applications:
The armature rotor winding machine is designed for the production
of efficient and compact DC and AC motors. Its versatile
capabilities make it the perfect choice for a variety of small
appliances, including grinders, dishwashers, crushers, soya-bean
milk makers, cooking machines, and more.
This innovative machine also plays a vital role in the
manufacturing of other household essentials such as coffee makers,
juicers, vacuum cleaners, mites, sweeping robots, hair ball
trimmers, electric razors, electric toothbrushes, razors, hair
clippers, cleansing instruments, egg beaters, and household
purifiers, to name a few.
Customization:
Customized Service for Armature Winding Machine - XINGTE
Brand Name: XINGTE
Model Number: XT-F06D
Place of Origin: Shenzhen
Certification: CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-25 days
Payment Terms: LC, T/T
Supply Ability: 1,500 PCS/MONTH
Wire Range: 0.05-0.5mm
Total Power: 7kW
Weight: Approx 700kgs
Machine Size: 1200x1600x1800mm
Winding Heads: 6
Customized Service for Drill Machine Armature Winding
At XINGTE, we understand that every customer has unique
requirements for their armature winding machines. That's why we
offer a variety of customization options for our Armature Winding
Machine to meet your specific needs.
Our Armature Winding Machine, model XT-F06D, is a high-quality and
efficient option for winding armature coils. But we also offer a
range of customization services to make sure the machine fits
perfectly into your production process.
Our customized services include:
- Adjusting the wire range to fit your specific needs, from 0.05mm to
0.5mm
- Modifying the total power to better suit your production
requirements, with a maximum of 7kW
- Customizing the machine size to fit your available space, with
dimensions of 1200x1600x1800mm
- Adding or removing winding heads to match your coil winding needs,
with a standard of 6 winding heads
In addition to these customizable features, we also offer
personalized packaging options, flexible delivery times, and a
variety of payment terms to ensure a smooth and convenient service
for our customers.
With XINGTE's customized services, you can get the perfect Armature
Winding Machine for your business, tailored to your exact
specifications. Contact us today to discuss your customization
needs and get a quote for our drill machine armature winding
customized service.
.
