Product Description

This series range of Differential mode Choke coils is designed to be used in a wide range of applications. The Differential Mode Choke coil is used to suppress the differential mode noise in the Equipment / System. The Common Mode choke provides saturation which provides effective Differential mode suppression.

Product Features

The magnetic core and wire diameter are compatible with a wide range, are not limited by materials, and have a high utilization rate;

The parameter changing time is short and the human-machine interface is clear and easy to understand;

One person can handle multiple stations, and the machine will stop automatically when the defective rate is detected;

Automatic early warning of material shortage and automatic shutdown;

There are a few parts to replace when changing the product type, and the equipment tension is changed according to the strength adjustment of the equipment screw rod;

magnetic cores with the same height and different outer diameters of plus or minus 5m can use one set of fixtures.

Product parameters

Applications of Differential Mode Chokes

Differential Mode Chokes are indispensable in many electronics and power systems. They find extensive applications in sectors such as power supplies, renewable energy systems, automotive electronics, telecommunications, and data transmission devices.

Power Supplies: In power supplies and converters, these chokes help filter out high-frequency DM noise, improving power quality and ensuring stable operation.

Renewable Energy Systems: In solar inverters and wind power systems, Differential Mode Chokes are used to minimize noise, thus ensuring optimal performance.

Automotive Electronics: Within vehicles, these chokes are crucial in reducing electrical noise from the power supply, thus safeguarding the functionality of onboard electronics.

Telecommunications and Data Transmission: Differential Mode Chokes help in maintaining signal integrity by filtering out differential mode noise, facilitating reliable

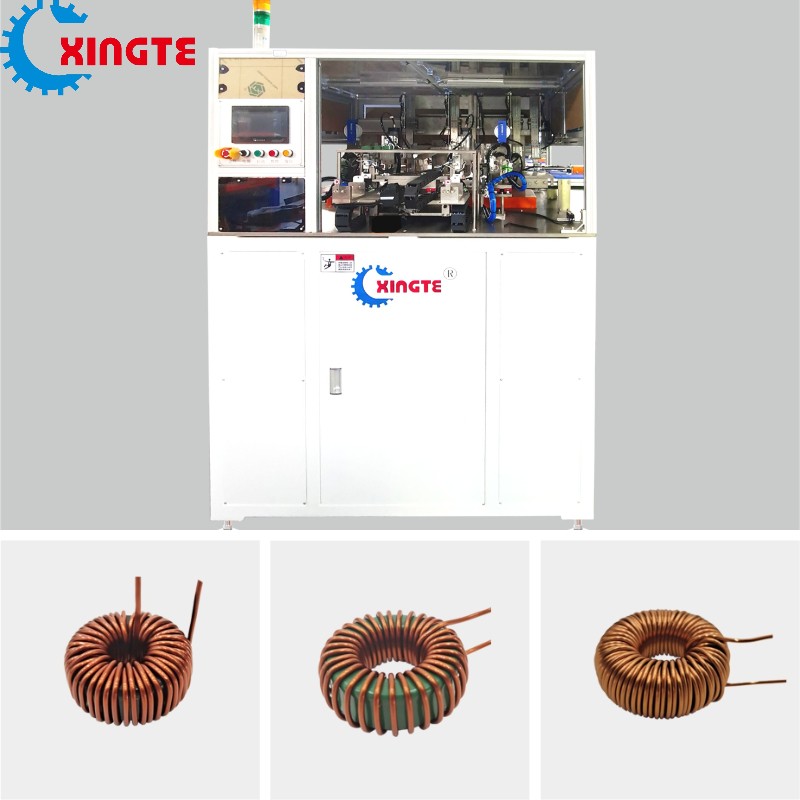

Our machine pictures

Differential Mode Chokes Coil

Our factory

Delivery

Shenzhen Xingte Technology Co., Ltd. was founded in 2011. It is a national high-tech enterprise with more than 1.000 employees and a factory area of 30,000 square meters. Xingte specializes in the research and development, production, sales, and technical services of fully automatic winding machines and winding systems. Xingte currently has an R&D team of more than 260 people and a high-quality after-sales service team of more than 400 people.

Xingte obtained more than 200 invention patents, utility model patents, software copyrights, and other certificates like CE, KC, etc. Xingte is a member unit of the Shenzhen Camera Industry Association and a governing unit of the Robot Intelligent Equipment Industry Association. The company has an independent machining center, complete production supporting equipment, and controllable product manufacturing costs and quality. The entire product production process adopts information management. Effectively manage production factors and implement the 6S (sorting, reorganizing, sweeping, cleaning, quality, and safety) on-site management concept within the company. Continuously improved the company's quality management to enhance customer satisfaction, and obtained ISO9001 quality management system certification.

The company's products are mainly used in mobile phones, computers, headphones, wireless charging, photovoltaics, new energy vehicles, electronic components, and other fields. Specializing in providing various types of speaker voice coil winding machines, motor winding machines, wireless charging coil winding machines, toroidal magnetic winding machines, new energy intelligent equipment, air core coil winding machines, transformer winding machines, and the middle and rear sections of magnetic rings Assembly lines and other production equipment as well as fully automatic speaker assembly equipment!

Our products are exported to all over the world such as Southeast Asia and European and American countries, South Korea, Singapore, Vietnam, Philippines, Turkey, etc. It has widely served well-known domestic and world brands such as Huawei, Apple, Samsung, and Xiaomi, and has been unanimously recognized by customers.
