Product Description:
A Fully Automatic Magnetic Ring Winding Machine for Multiple
Windings
This machine is specifically designed for multi-windings, making it
ideal for various applications.
Featuring automatic magnetic core uploading, wire feeding, winding,
unloading, and more, this machine eliminates the need for manual
labor and greatly improves overall efficiency.
With its dual working station design, the winding speed is
significantly increased.
Whether it's a single layer, two layers reciprocating, or three
layers of wiring, this machine can handle precise and efficient
winding. It is also compatible with a wide range of wire diameter,
from 0.5mm to 2.5mm.
Fully automated, this machine only requires one person to operate
multiple units.
In case of materials shortage, such as magnetic core or copper
wire, the machine will automatically stop to avoid any disruptions
to the production process.
This machine is compatible with various magnetic core materials,
including amorphous, iron powder core, iron-silicon-aluminum, and
more. It can also handle both copper wire and aluminum wire.
The speed of the machine is adjustable, and changing specifications
is quick and easy. This allows for efficient and flexible
production processes.
Features:
Product Features
The Fully automatic Three three-phase choke and Inductor Hook
Winding Machine has revolutionized the manufacturing industry,
enabling the production of large quantities of advanced chokes and
inductors in a short time.
Its automated system ensures precise wire and cord bundling,
enhancing efficiency and accuracy. Moreover, the machine's
durability and reliability make it a sound investment for
industries requiring frequent use of chokes and inductors.
Furthermore, this advanced technology has elevated the quality of
chokes and inductors by utilizing top-quality materials, resulting
in optimal performance.
The seamless, accurate, and consistent winding process eliminates
errors and defects, leading to increased production of high-quality
products.
Technical Parameters:
| Three-Phase Common Mode Choke Winding Machine Technical Parameters |
|---|
| Operation Mode | Automatic |
| Coil outer diameter | 10-50mm |
| Color | Silver/Customized |
| Coil stack height | 30mm |
| Safety Protection | Emergency Stop and Leakage Protection |
| Wire Diameter | 0.5-2.5mm |
| Wire Length | 100-1600mm |
| Control System | PLC Control |
| Winding Speed | 0.6/1.2s/turn |
| Power Supply | 220V/50Hz |
Applications:
Power Electronics
Power electronics is a field of engineering that deals with the
conversion, control, and management of electrical power. It
involves the use of various electronic devices to change the
voltage, current, and frequency of electricity to suit specific
applications.
Power Line Input Filter
A power line input filter is a type of power electronics device
that is used to reduce electromagnetic interference in electrical
circuits. It works by removing unwanted noise signals from the
power supply, ensuring a more stable and reliable electrical
output.
Radio Interference Suppression in Motors
In power electronics, motors can generate radio frequency
interference, which can disrupt other electronic devices. To
address this issue, specialized filters are used to suppress the
unwanted noise and ensure smooth operation of the motor without
interfering with other equipment.
Suppression for Common Mode Noise
Common mode noise refers to interference that appears on both input
and output lines of a circuit. In power electronics, common mode
noise filters are used to suppress this type of noise, ensuring
clean and stable power for sensitive electronic devices.
Frequency Converter
A frequency converter is a power electronics device that changes
the frequency of an alternating current (AC) electrical signal. It
is commonly used in applications such as variable speed drives,
motor control, and renewable energy systems.
Power Supplies
Power supplies are essential components in power electronics,
providing the necessary voltage and current to electronic devices
for their proper functioning. They come in various forms, including
linear and switching power supplies, and are used in a wide range
of applications, from small electronic devices to large industrial
machinery.
Charging Stations
In the context of power electronics, charging stations are devices
used to supply electrical energy to rechargeable battery-powered
devices, such as electric vehicles. They incorporate various power
electronics components to control the charging process and ensure
safe and efficient charging of the batteries.
Pictures of our company
Our machine pictures

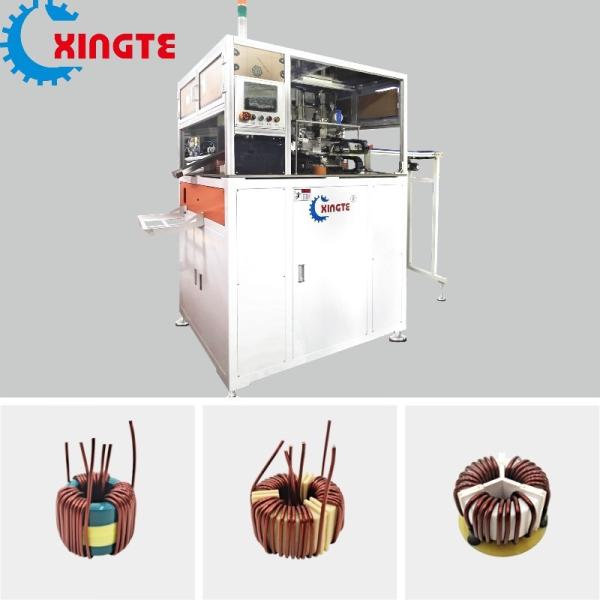

Three Phase Toroidal coil samples
Delivery
Our partners
