    XT-609 PLC Control Speaker Voice Coil Winding Machine High Capacity

    XT-609 Automatic PLC Control Speaker Voice Coil Winding Machine With 2000pcs/Hour Winding Capacity

    Product Description:

    Description:

    The XT-609 CNC automatic speaker voice coil winding machine is a state-of-the-art digital programmable machine designed for winding speaker voice coils. With its advanced technology and features, this machine can produce high-quality results in a precise and efficient manner.

    One of the main features of this machine is its insulation tape device, which allows for the coils to be tightly wrapped and protected. In addition, there is an optional margin tape device that can further enhance the coil's stability and durability.

    The machine is also equipped with an alcohol bath wire spreading head, which helps to evenly distribute the wire during the winding process. This ensures a smooth and consistent winding of the coil.

    Another benefit of this machine is the optional winding tensioner, which allows for greater control and precision in the winding process. This is especially useful when working with larger speaker voice coils.

    In summary, the XT-609 CNC automatic speaker voice coil winding machine is the perfect choice for those looking for a highly advanced and efficient machine for winding large speaker voice coils. With its innovative features and capabilities, it guarantees top-notch results every time.

    Features:

    Wire Winding Machine Features

    The wire winding machine has the capability to wind both alcohol-soluble and hot-air enameled wires, making it a versatile tool for various applications.

    Precision Winding with Step Motor

    The machine is equipped with a step motor that is driven by a constant-current power supply. This enables high spreading speed and precise winding, ensuring excellent results every time.

    Easy Setup with "Start Point" Function

    The "Start Point" for winding can be set with ease using either the key panel or a teachable function. The position of the spreading head can be viewed on the display during setup, providing visual reference for accuracy.

    Efficient Winding with Ceramic Guides

    To prevent the isolation of enamel due to high temperatures, the machine is equipped with ceramic guides. This ensures a smooth and efficient winding process.

    Improved Productivity with Foot-Switch Connection

    The machine allows for independent setting of winding parameters and options for each step. This provides flexibility and customization for different winding needs.

    Memory Capacity for Parameter Storage

    The machine has a memory capacity that can store up to 999 steps of parameters. This allows for easy retrieval and quick setup for future winding jobs. The off-power memory retention feature ensures that the parameters are retained even when the machine is turned off.

    Technical Parameters:

    Model number:XT-609
    Wire Diameter :0.04-0.2mm( can customized)
    Coil stack height≤5mm
    Coil outer diameter≤15mm
    Yield rate> 98%
    Utilization rate>85%
    Winding speed4800rpm
    TensionerServo tensioner
    Power:2 KW
    Power supply:AC 220V,50/60Hz
    Air pressure:> 0.6Mpa
    Machine dimension:780*14600*1560mm
    G. W:460KGS

    Applications:

    I

    Applications area

    Paper tube, rubber tube-based speaker voice coil, cavity speaker voice coil, Bluetooth audio


    Pictures of our factory


    Pictures of machine

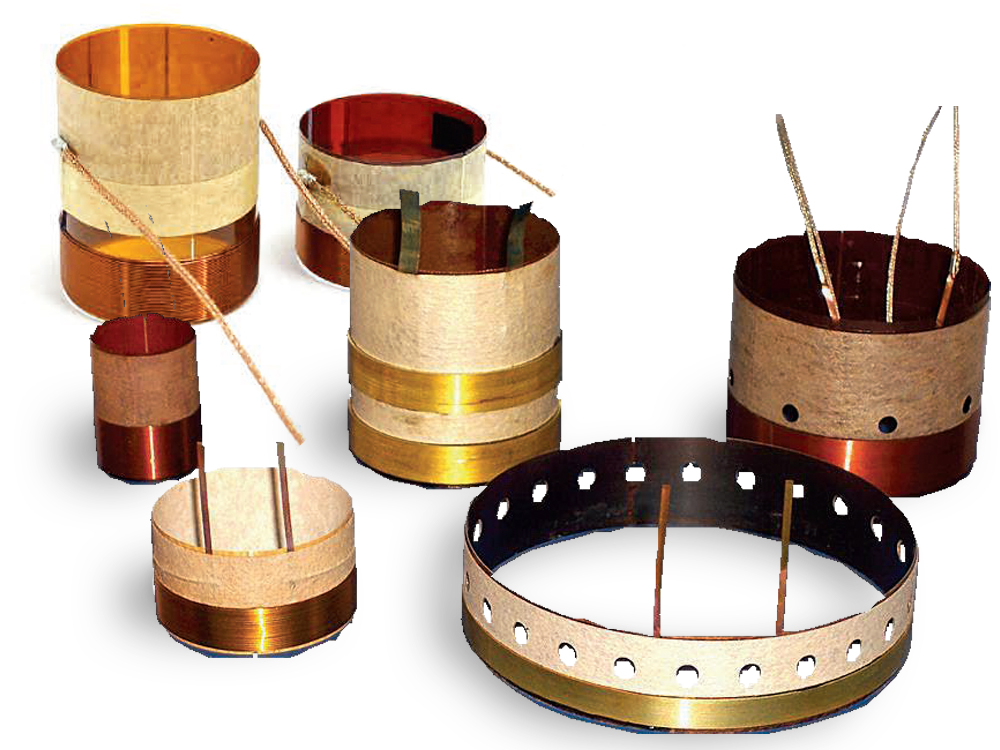

    Pictures of coil for speaker


    FAQ:

    • Q: What is the brand name of this product?
    • A: The brand name of this product is XINGTE.
    • Q: What is the model number of this product?
    • A: The model number of this product is XT-609.
    • Q: Where is this product manufactured?
    • A: This product is manufactured in China.
    • Q: What is the capacity of this Voice Coil winding machine?
    • A: The capacity of this machine varies depending on the model, but it can wind coils with a range of sizes.
    • Q: Does this product come with a warranty?
    • A: Yes, this product comes with a standard warranty from XINGTE.
