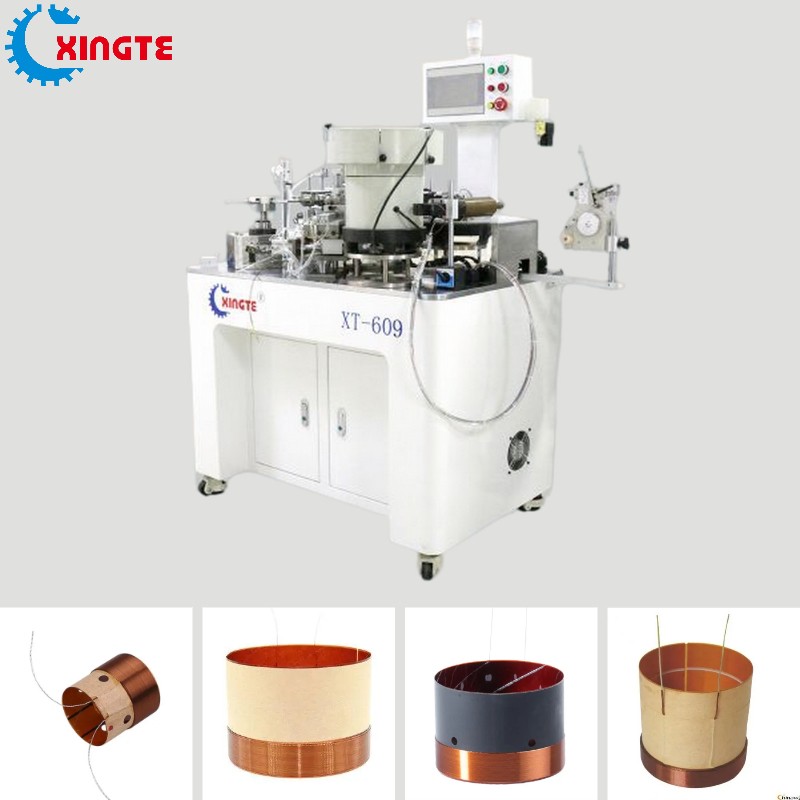

Specially designed machine for Skeleton Voice Coils Winding

Applications area

Paper tube, rubber tube-based speaker voice coil, cavity speaker voice coil, Bluetooth audio

Product Features

This machine is a special model for skeleton voice coils. It can wind both alcohol-soluble and hot-air enameled wires.
It can also be used for air-core coil winding if turn off the bobbin part

It adopts flying fork winding and six-station rotary trimming to improve production efficiency. This machine is the most efficient model in the industry. The capacity can reach 2000 PCs per hour based on about 30 turns. It improves product quality and saves 3-4 labor costs. , hot air wound products do not require baking

Product parameters

What Is a Voice Coil?
The coil provides a motive force onto the cone due to the magnetic field created by the current passing through it. This term is also adopted for linear motor voice coils. An example is those motors used to move the heads within hard disk drives that produce a larger force and move a longer displacement despite working on the same principle

Basic information about XINGTE

Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area

Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity

Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery

Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability

Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service

Patents & certificates

Patents & certificates:
XINGTE obtained 120+ Patents and related certificates

Our factory

Machines

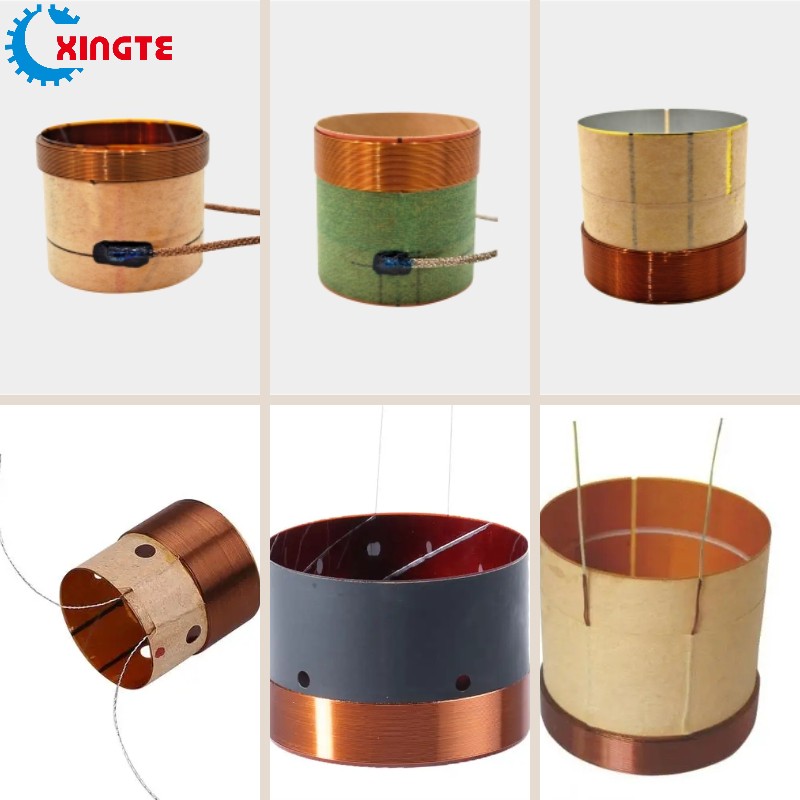

Skeleton Voice Coils

Delivery

Applications of Voice Coils

The medical industry is a leading example regarding the adoption of voice coil actuators. Medical equipment and devices have gone through a notable reduction in size and mass over the past years so that they can be as portable as ever. This progression in reducing the overall weight and size demanded that each part be as small and lightweight as possible. The voice coil actuators are suitable for this trend and are considered reliable, highly efficient, and precise. Typical examples of medical devices that use voice coils are ventilators and pumps for dosing and metering of patients.

Shenzhen Xingte Technology Co., Ltd. was founded in 2011. It is a national high-tech enterprise with more than 1.000 employees and a factory area of 30,000 square meters. Xingte specializes in the research and development, production, sales, and technical services of fully automatic winding machines and winding systems. Xingte currently has an R&D team of more than 260 people and a high-quality after-sales service team of more than 400 people.

Xingte obtained more than 200 invention patents, utility model patents, software copyrights, and other certificates like CE, KC, etc. Xingte is a member unit of the Shenzhen Camera Industry Association and a governing unit of the Robot Intelligent Equipment Industry Association. The company has an independent machining center, complete production supporting equipment, and controllable product manufacturing costs and quality. The entire product production process adopts information management. Effectively manage production factors and implement the 6S (sorting, reorganizing, sweeping, cleaning, quality, and safety) on-site management concept within the company. Continuously improved the company's quality management to enhance customer satisfaction, and obtained ISO9001 quality management system certification.

The company's products are mainly used in mobile phones, computers, headphones, wireless charging, photovoltaics, new energy vehicles, electronic components, and other fields. Specializing in providing various types of speaker voice coil winding machines, motor winding machines, wireless charging coil winding machines, toroidal magnetic winding machines, new energy intelligent equipment, air core coil winding machines, transformer winding machines, and the middle and rear sections of magnetic rings Assembly lines and other production equipment as well as fully automatic speaker assembly equipment!

Our products are exported to all over the world such as Southeast Asia and European and American countries, South Korea, Singapore, Vietnam, Philippines, Turkey, etc. It has widely served well-known domestic and world brands such as Huawei, Apple, Samsung, and Xiaomi, and has been unanimously recognized by customers.

Our Vision: To be the global leader in coil winding and related equipment manufacturing

Our Mission: Create value and a better life for customers

Our values:Customer-centric: win-win cooperation, faster and better, Staff-oriented: emphasizing both ability and integrity and continuous optimization
