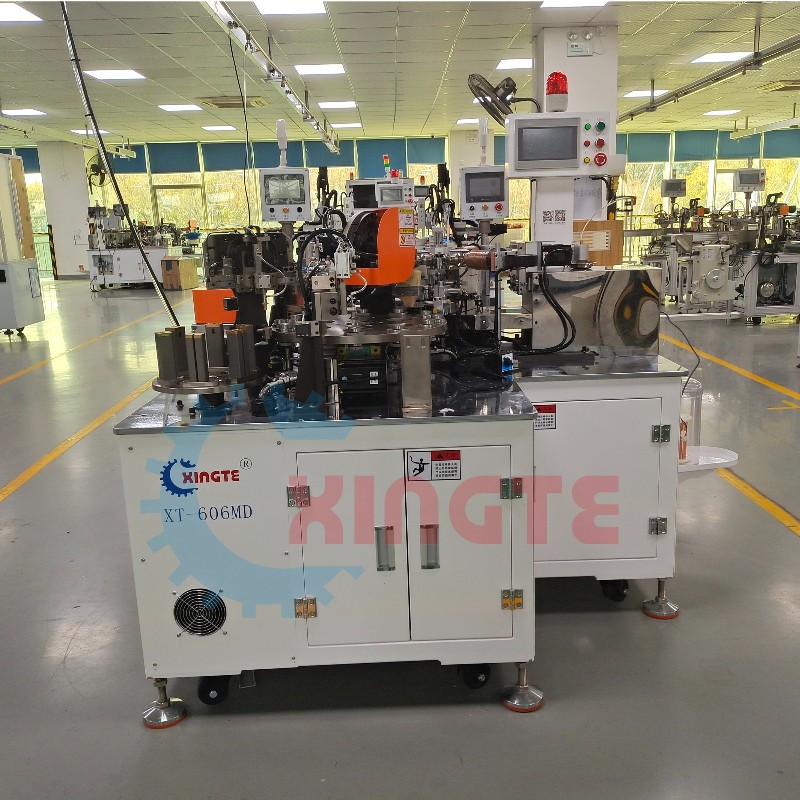

Specially designed machine for speaker Automatic Voice Coil Winding And Diaphragm Assembly

This machine is specially designed for voice coil winding and diaphragms-voice coil assembling. It can wind both alcohol-soluble and hot-air enameled wires. It is mainly used in the combined winding of voice coils and diaphragms, with a high degree of automation.

This equipment has the characteristics of high efficiency, large production capacity, and round-the-clock uninterrupted production. Greatly saves labor costs. It can meet the automated production needs of various users and has been unanimously recognized by customers.

Product Features

The control system adopts a full English touch screen interface, which is easy to operate. A new staff can take up the job after two days of training.

The mechanical operation part is reasonably designed, ensuring the production efficiency of the equipment higher than our competitors

The metal materials used have been treated with special processes, which significantly improve the wear resistance and anti-corrosion performance of the equipment compared with ordinary equipment, extending the service life of the equipment.

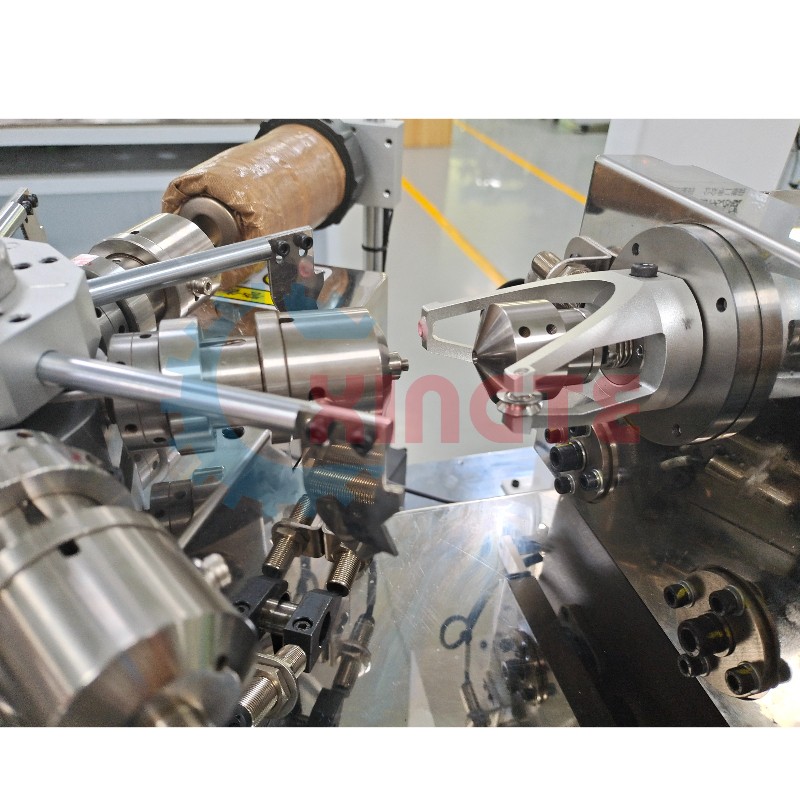

The mechanical parts use high-precision servo motors and stepper motors, and imported bearings ensure the high efficiency and high precision of the product; truly achieving stable and efficient production 24 hours a day after startup.

It can be compatible with fully automated production lines, and can also be used to manage multiple devices at the same time.

The diaphragm feed adopts a multi-station feeding trough, which does not require feeding for a long time and can be replenished at any time without stopping the machine. The diaphragm can be fed into a single piece without affecting the subsequent work stations.

This machine is the most efficient and stable model in the industry. The output can be calculated at around 1800-2000 PCS/H within 80 turns per hour.

Application areas

Headphone voice diaphragm, in-ear headphone voice diaphragm, true wireless Bluetooth headset voice diaphragm, security speaker voice diaphragm, receiver and other voice diaphragm and voice coil combinations.

Product parameters

Basic information about XINGTE

Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area

Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity

Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service

Patents & certificates

Patents & certificates:
XINGTE obtained 120+ Patents and related certificates

Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery

Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability

Our factory

Machines

Skeleton Voice Coils

Delivery

Shenzhen Xingte Technology Co., Ltd. was founded in 2011. It is a national high-tech enterprise with more than 1.000 employees and a factory area of 30,000 square meters. Xingte specializes in the research and development, production, sales, and technical services of fully automatic winding machines and winding systems. Xingte currently has an R&D team of more than 260 people and a high-quality after-sales service team of more than 400 people.

Xingte obtained more than 200 invention patents, utility model patents, software copyrights, and other certificates like CE, KC, etc. Xingte is a member unit of the Shenzhen Camera Industry Association and a governing unit of the Robot Intelligent Equipment Industry Association. The company has an independent machining center, complete production supporting equipment, and controllable product manufacturing costs and quality. The entire product production process adopts information management. Effectively manage production factors and implement the 6S (sorting, reorganizing, sweeping, cleaning, quality, and safety) on-site management concept within the company. Continuously improved the company's quality management to enhance customer satisfaction, and obtained ISO9001 quality management system certification.

The company's products are mainly used in mobile phones, computers, headphones, wireless charging, photovoltaics, new energy vehicles, electronic components, and other fields. Specializing in providing various types of speaker voice coil winding machines, motor winding machines, wireless charging coil winding machines, toroidal magnetic winding machines, new energy intelligent equipment, air core coil winding machines, transformer winding machines, and the middle and rear sections of magnetic rings Assembly lines and other production equipment as well as fully automatic speaker assembly equipment!

Our products are exported to all over the world such as Southeast Asia and European and American countries, South Korea, Singapore, Vietnam, Philippines, Turkey, etc. It has widely served well-known domestic and world brands such as Huawei, Apple, Samsung, and Xiaomi, and has been unanimously recognized by customers.

Our Vision: To be the global leader in coil winding and related equipment manufacturing

Our Mission: Create value and a better life for customers

Our values:Customer-centric: win-win cooperation, faster and better, Staff-oriented: emphasizing both ability and integrity and continuous optimization
