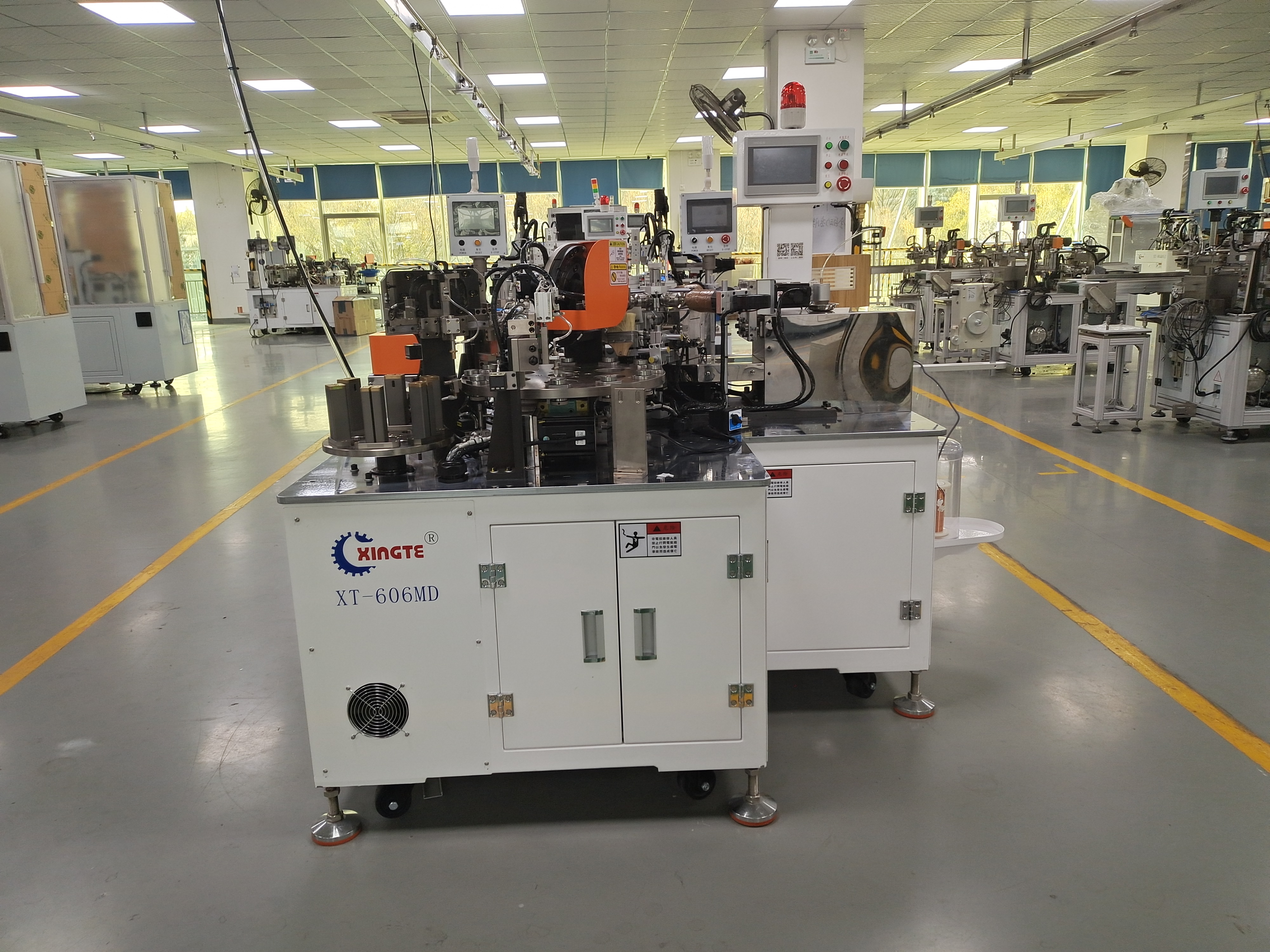

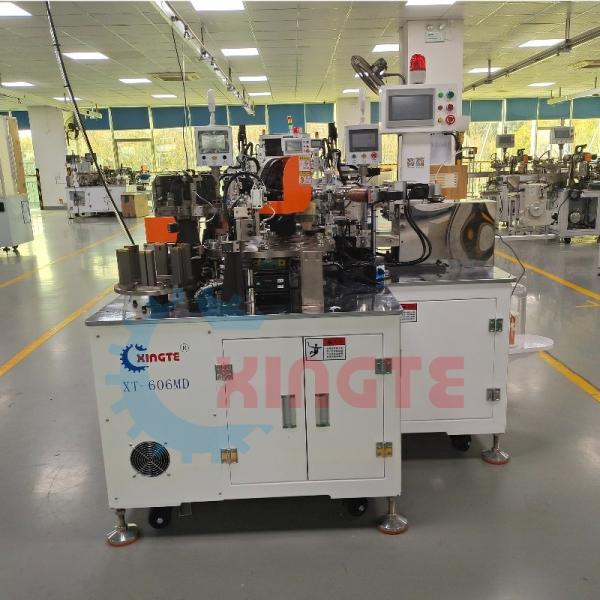

Specially designed machine for speaker Automatic Voice Coil Winding
And Diaphragm Assembly
Equipment overview:
This machine is a special model for the assembly and bonding of
voice coil and diaphragm (sound film combination), which can wind
both alcohol-soluble and hot-air enameled wires. Mainly used in the
combined winding of voice coil and diaphragm, with a high degree of
automation. The equipment has the characteristics of high
efficiency, high production capacity, and 24-hour uninterrupted
production. Greatly saves labor costs. It can meet the needs of
various users for automated production and has been unanimously
recognized by customers.
Product Features:
1, The control system adopts a full Chinese touchscreen interface,
which is easy to operate, and no basic personnel can be on duty
after two days of training.
2, The mechanical operation part is reasonable, making the
production efficiency of the equipment higher than that of imported
equipment.
3, The metal materials used are treated with special processes,
which significantly improve the wear resistance and corrosion
resistance of the equipment compared with ordinary equipment, and
extend the service life of the equipment.
4, The mechanical parts all use high-precision servo motors and
stepping motors, and imported bearings ensure the high efficiency
and high precision of the products;
5, it can truly achieve stable and efficient production within 24
hours of starting up. It can be compatible with fully automated
production lines, and one person can manage multiple equipment at
the same time.
6, Diaphragm feeding adopts multi-station feeding trough, no need
to feed for a long time, replenishment at any time without
stopping, etc., the diaphragm can reach single-piece feeding
without affecting the rear stations.
7, This machine is the most efficient and stable model in the
industry, and the output can be around 1800-2000 PCS per hour.
Applicable fields:
Headphone sound film, Bluetooth speaker sound film, smart speaker
sound film, earphone sound film, Bluetooth headset sound film, toy
speaker sound film, etc.
| Name | parameter | name | parameter |
| Model | XT-606MD | fly fork | 1 spindle |
| Dimensions | 1800(W)×1900(L)×800(H)mm | rotating speed | Max.4800rpm |
| Machine weight | 750kgs | coil stack height | Max.3.2mm |
| power supply | AC220V, 50/60Hz | wire dimension | 0.01-0.3(mm) |
| power | 3.5KW | coil stack height | ≤15mm |
| air pressure | 0.45Mpa | coil outer diameter | ≤φ20mm |
| Spindle direction: | clockwise/counterclockwise | Lead wire position | same direction upward |
| Step memory capacity | 9999 | Lead wire length | 20-55mm |
| Control system | touchscreen | cutting method | air pressure cutting |
| Number of axis | 10 axis | Diaphragm outer diameter | ∅6- ∅28 |
| Tensioner: | Servo Tensioner | Diaphragm thickness | ≥0.006mm |
| Diaphragm rotation mode: | 12 stations | Coil curing method: | preheating the fixture and curing by heating |
| Production capacity | 1800-2000pcs
|
