XT-DGRXJ multi-wire stator winding machine is specially designed
for multiple wires and parallel coil winding
Which can improve the fill factor and winding efficiency.
The advantage of stator multi-wire winding compared with a common
single-wire winding
1, the multi-wire winding machine can wind maximum 32 wires
simultaneously, which increases the winding efficiency
2, multi-wire winding normally uses a wire diameter less than
0.8mm,It has a higher fill factor compared with a single wire of
more than 1mm
3. Normally, the thicker the wire diameter, the more difficult
winding, mainly because it is easy to hurt the wire, but also easy
to scrape off the wire. Multi-wire winding uses a smaller wire
diameter, which can avoid the problems relatively speaking
4. Motor operation, the current through the coil, there will be a
skin effect, the overcurrent capability will have a certain
weakening, so multi-wire winding overcurrent capability is better
than a single line.
5. Efficiency,in the case of conditions permitting, the use of
multi-wire parallel winding is beneficial,can improve the
efficiency of winding to a certain extent.
6. Ease to winding, Multi-wire winding uses wire less than 0.5mm,
which has better bendability and flexibility. Single winding
normally uses thick wire (usually more than 0.8mm) which is harder
to wind
Main feature:
1. Equipped with multi servo motor, multi-strand wires can be wound
at the same time, up to more than 32 wires
2. Adopt 10-inch Intuitive PLC human-computer interaction
controller for easy operation.50 programs can be stored for fast
program switching.
3. Fixtures are easy to replace and can effectively improve
production efficiency
4. It adopts unique multi-strand wire tensioner system with good
tension stability.
5, The machine is highly automated, automatic winding, automatic
wire hooking, automatic slot changing, automatic wire passing,
automatic wire cutting
Product parameters
Model | XT-DGRXJ |
No. of station | 1 working station |
Stator dia. | Ref: Max. Ø250mm |
Stator Stack height | Ref: Max. 150mm |
Applied Wire size | Ref: Max. Ø0.8mm |
number of wires | Ref: Max. 32 roots |
number of stator slot | Ref: Max 32 slots |
Power supply | AC 380V,50/60Hz |
Power | 7.5Kw |
Air pressure | Min. 0.6MPa |
Machine dimensions | 1,380(L)x1360(W)x1,900(H)mm |
Machine weight | Approx. 450kgs |
Applicable industries:
Automatic inner Motor needle Winding Machine
Brushless motors, stepper motors, fan motors, elevator door motors,
new energy motors and other types of DC brushless motors.

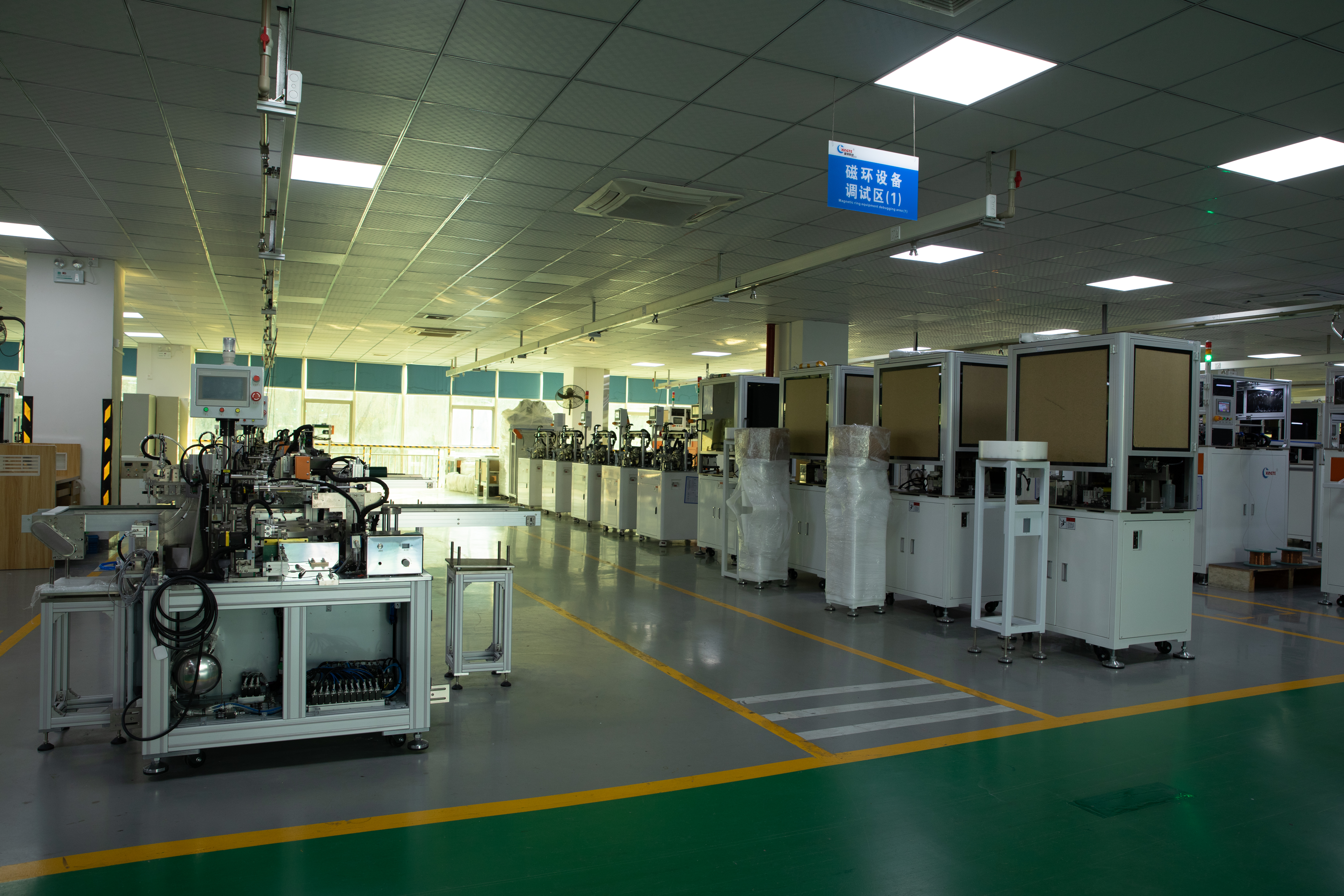

Our company pictures
