    800-1200RPM Brushless Stator Winding Machine For Electric Motors Multi Station

    Ask Lasest Price
    Brand Name : XINGTE
    Model Number : XT-02D
    Certification : CE,IOS9001,KC,ISO45001,ISO24001
    Price : negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 2.000 sets per year
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

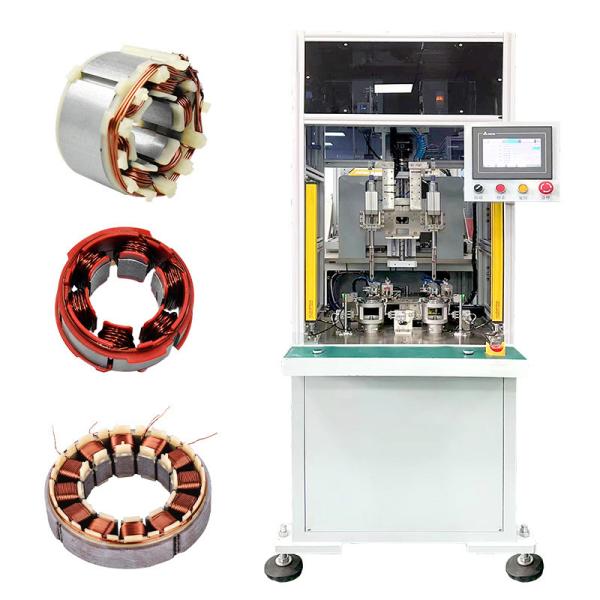

    800-1200RPM Brushless Stator Winding Machine For Electric Motors Multi Station

    China Good quality Brushless Stator Winding Machine for motor manufacturing


    The Brushless Stator Winding Machine offers numerous advantages, including:

    1. Low Noise: With components such as servo motors, ball screws, guides, and cylinders, this winding machine operates with minimal noise compared to mechanical equipment.

    2. Multi-Station Capability: Depending on factors like slot, diameter, and outside diameter, the machine can be configured with 1, 2, 4, or 6 stations. This flexibility allows for increased efficiency by utilizing different machines for different products.

    3. Rapid Type Change: The clamping fixture module design enables swift type changes, saving valuable time during production.

    4. Precise and Neat Arrangement: The clamping fixture and winding tools are precision-manufactured, ensuring accurate positioning and neatly arranged winding after machine operation.

    5. Single or Multi-Strand Winding: The machine accommodates both single strand and multi-strand winding. This capability resolves challenges associated with thick wire winding while simultaneously enhancing production efficiency.

    6. Versatile Compatibility: The Brushless Stator Winding Machine is suitable for multiple types of brushless motor production. It eliminates the need for single-purpose machines, optimizing resource utilization and reducing waste.

    7. Customization Possibilities: In cases of special products that exceed standard outer diameter and wire diameter, the machine can be customized to address various winding challenges, providing tailored solutions.

    Throughout these advantages, the Brushless Stator Winding Machine emerges as an efficient and versatile solution for winding operations, offering precise winding, flexibility, noise reduction, and customized capabilities.


    XINGTE Competitive advantages


    XINGTE is a high-tech industry company that specializes in the customized production of motor production line equipment. With a focus on research and development, production, and sales, XINGTE is committed to providing integrated solutions for motor manufacturing.

    The company's main production equipment includes a range of winding machines designed for specific applications. These machines cover various needs, such as the Stator Precision Wire Winding Machine, Block Stator Winding Machine, Multi-Slot Stator Automatic Winding Machine, Automatic Winding Equipment for Motor Stator Inside and Outside, Pump High-Speed Winding Machine, Fan High-Speed Winding Machine, and Skew Rotor Winding Machine. These machines find applications in industries such as medical, aviation, automotive, home appliances, power tools, and more.

    Additionally, XINGTE offers customized automatic assembly lines for motor production. These lines include comprehensive sets of fully automated motor assembly equipment tailored for different requirements. This encompasses fully automated motor assembly equipment for new energy vehicles, 3C (Computers, Communications, and Consumer Electronics) automation equipment, and other automation solutions.

    By combining advanced technology, precise manufacturing, and a focus on customization, XINGTE strives to meet the diverse needs of industries relying on motor manufacturing. The company's commitment to integrated solutions ensures efficient and reliable equipment for various sectors.


    Application


    The BLDC needle winding machine is especially suitable for range hood motor, hair curler motor, servo motor, brushless household motor, stepper motor, fan motor, Ceiling fan motor,bladeless fan motor, brushless power tools, brushless medical equipment and other types of DC brushless motor.


    How shall customers order Xingte product


    It would be better if the customer could send us a detailed drawing including the below information.
    1. Stator drawing
    2. Stator winding drawing
    3. Winding distribution drawing
    4. Other technical requirement
    If possible, it will be better if customer can send us samples.


    Product parameters


    Model number:


    XT-02D

    Wire Diameter :


    0.1 ~ Ø1.6mm

    Stator Outer diameter:


    Max 106mm

    Stator inner diameter:


    10mm

    Stator stack thickness :


    150mm

    Winding method:


    needle winding

    Winding station:


    2 stations

    Power:


    6.5KW

    Power supply:


    AC380V,50/60Hz

    Air pressure:


    > 0.4Mpa

    Winding speed:


    1200Rpm

    Machine dimension:


    (L)1500 *(W)680*(H)1990 mm

    G. W:


    600KGS

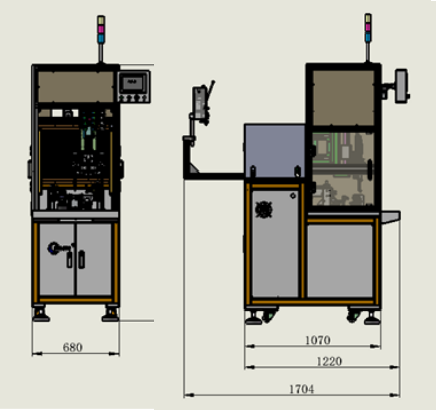

    The construction of Xingte Brushless Stator Winding Machine



    The coil-winding process



    Stator coil samples


    The finished stator samples


    Order process


    Delivery


    Our partners
