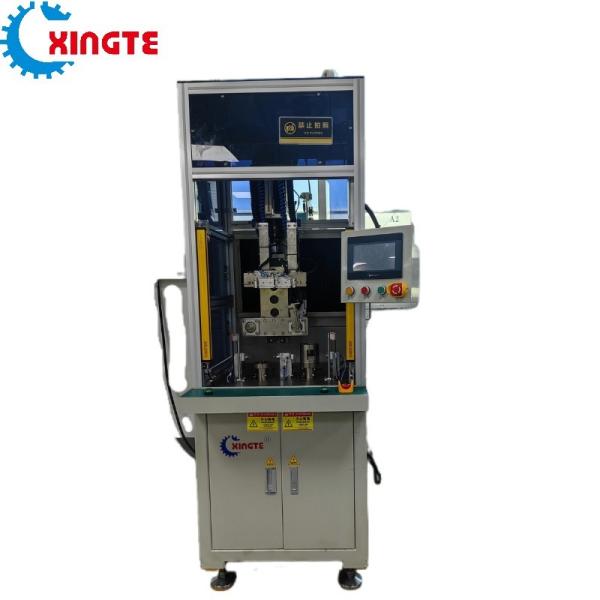

automatic Dual Working Stations BLDC Motor Winding Machine With
Needle Winding method
Product overview:
This Dual Working Stations Motor Winding Machine adopts needle
winding technology,is suitable for winding BLDC stators. It is
equipped with servo system. It can automatically insert wire end,
winding, arraying, indexing, cutting, and demolding. This needle
winder is designed with two working stations. Machine movement is
pre-set in the touch screen. All the winding data can be shown on
the touch screen during the machine running. During running, the
machine will alarm if something goes wrong.
XINGTE Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
It is suitable for rotors or stators with different model numbers
and dimensions.
The operation and tooling change process is easy.
We could customize the machine for our customer as per their
requirement.
We directly supply our machines to many countries, like the USA,
France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameters could be set
on the touch screen,
Operation step
1. Power on the machine
2. Thread the wire
3. Put stator to the working station table
4. Adjust the tooling according to different model stator
5. Set the stator diameter in the touch screen then select the
pre-set data.
6. Press the "start" button.
7. The machine will automatically do winding.
8. Take out the stator
Application
The BLDC needle winding machine is especially suitable for range
hood motor, hair curler motor, servo motor, brushless household
motor, stepper motor, fan motor, Ceiling fan motor,bladeless fan
motor, brushless power tools, brushless medical equipment and other
types of DC brushless motor.
Information needed for BLDC Stator Coil Winder inquiry
It will be better if customer could send us detailed drawing
including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.
The stator is stationary during winding. All needle movements are
motorized and programmable and managed in direct drive mode (no cam
system, no belts, no lead screw).
It is possible to wind:
- Inner straight slot stators
- Inner skewed slot stators
- Outer stators straight and skewed slot
Product parameters
Model number: | XT-02D |
| Wire Diameter : | 0.1 ~ Ø1.6mm |
| Stator Outer diameter: | Max 106mm |
| Stator inner diameter: | 10mm |
| Stator stack thickness : | 150mm |
| Winding method: | needle winding |
| Winding station: | 2 stations |
| Power: | 6KW |
| Power supply: | AC380V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Winding speed: | 1200Rpm |
| Machine dimension: | (L)1500 *(W)680*(H)1990 mm |
| G. W: | 600KGS |
