Product Description:
The Xingte XT-DGRXJ multi-strand motor stator winding machine is a
specialized piece of equipment used in the manufacturing process of
electric motors. This machine is designed to efficiently wind
multiple strands of wire simultaneously onto a stator core,
creating the coils that form the motor windings.
One significant advantage of this machine is its ability to wind
multiple coils simultaneously, resulting in a considerable
reduction in winding time compared to single-strand methods. This
efficiency is especially beneficial in mass production environments
where large quantities of motors are produced.
Furthermore, the use of multiple strands in the winding process
provides mechanical strength and durability to the motor windings.
By evenly distributing the current-carrying capacity across
multiple wires, the risk of overheating or wire damage is
minimized, resulting in a more reliable and robust motor.
The multi-strand motor stator winding machine is a specialized
piece of equipment that enables efficient and precise winding of
multiple wire strands onto a stator core. This technology not only
improves production speed, but also enhances the mechanical
strength and supports the manufacturing of high-quality electric
motors. It is an essential tool in mass production environments
where there is a high demand for electric motors.
Compared to single-strand winding methods, the multi-strand winding
machine offers a significant advantage by winding multiple coils
simultaneously, greatly reducing the time required for the winding
process. This efficiency is crucial in meeting the growing demand
for electric motors in various industries.
In addition to its time-saving capabilities, the use of multiple
strands in the winding process also provides additional benefits
for the durability and reliability of the motor. By evenly
distributing the current-carrying capacity across multiple wires,
the risk of overheating or wire damage is minimized, ensuring the
motor's long-term performance and longevity.
Features:
The stator slot is wound with multiple sets of servo linkage,
winding the multiple wire efficiently.
Operate with ease using the 10 inch LCD English touch screen
interface. Winding data can be stored simultaneously in multiple
sets.
The single station performs automatic winding, hooking, slot
changing, wire passing, and tapping, all with precision and ease.
The automatic thread clipping and trimming feature uses precision
ball screws and linear guide hooks to neatly and consistently
arrange the threads. The multi-strand thread tension system ensures
stable tension.
This machine is equipped with the latest servo motor, which has a
simple and delicate structure. Using NC, it can control up to 4
axes at the same time, making it adaptable to changes in
specifications. It is ideal for multi-axis servo motor control in
multi-strand wire winding, providing higher slot full rate and
winding precision with servo control. The tension of the wires can
be easily adjusted, and the machine is simple to learn and operate.
The electronic control system is highly reliable.

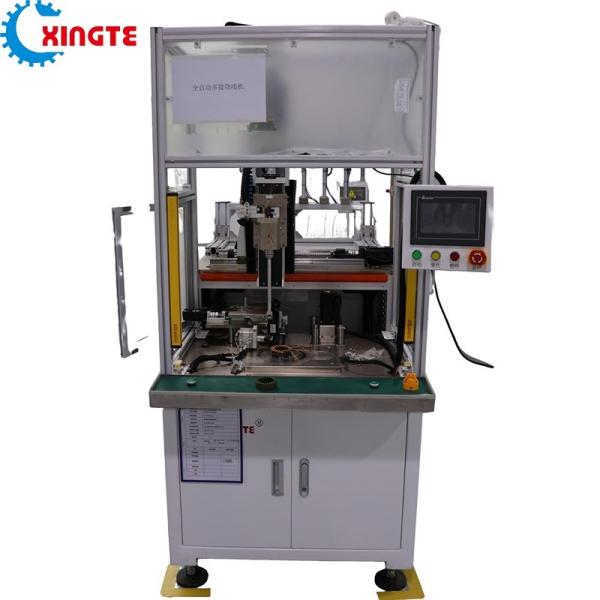

The pictures of Xingte multi-strand stator winding machine
Technical Parameters:
| Product Name | Stator Winding Machine |
|---|
| Stator Outer diameter | Max 250mm |
| Stator Stack Height | Max 150mm |
| Number of Wire | 32 Wires (Simultaneous Winding) |
| Safety Features | Emergency Stop Button, Overload Protection |
| Air Supply | 0.6Mpa |
| Air Pressure | Minimum 0.6MPa |
| Operate Rate | ＞85% |
| Wire Diameter | Max 0.8mm |
| Yield Rate | ＞95% |
| Number of Stator Slot | 3-48 Slots |
Keywords: Multi-strand coil winding machine, multi-strand winding
machine, Multi-strand coil winding machine
Applications:
Application Areas
The application of stator winding is varied and widespread. Some of
its most common uses include:
- Automotive Motors: Stator winding is essential in many components of automotive
motors, such as AC and DC motors used in power windows, windshield
wipers, and fan systems.
- IOT/AI Motors: With the rise of Internet of Things (IOT) and Artificial
Intelligence (AI), stator winding has become an integral part of
various smart devices, including home automation systems, robots,
and drones.
- Military Industry: Stator winding plays a vital role in the development of advanced
military technology, where it is used in weaponry, communication
systems, and combat vehicles.
- Industrial Control: Stator winding is also used in industrial control systems, where
it helps regulate and control machinery and equipment in factories
and manufacturing plants.
- Toy Motors: Stator winding is a crucial component in many toy motors. From
remote-controlled cars to drones and helicopters, stator winding
enables these toys to move and function.

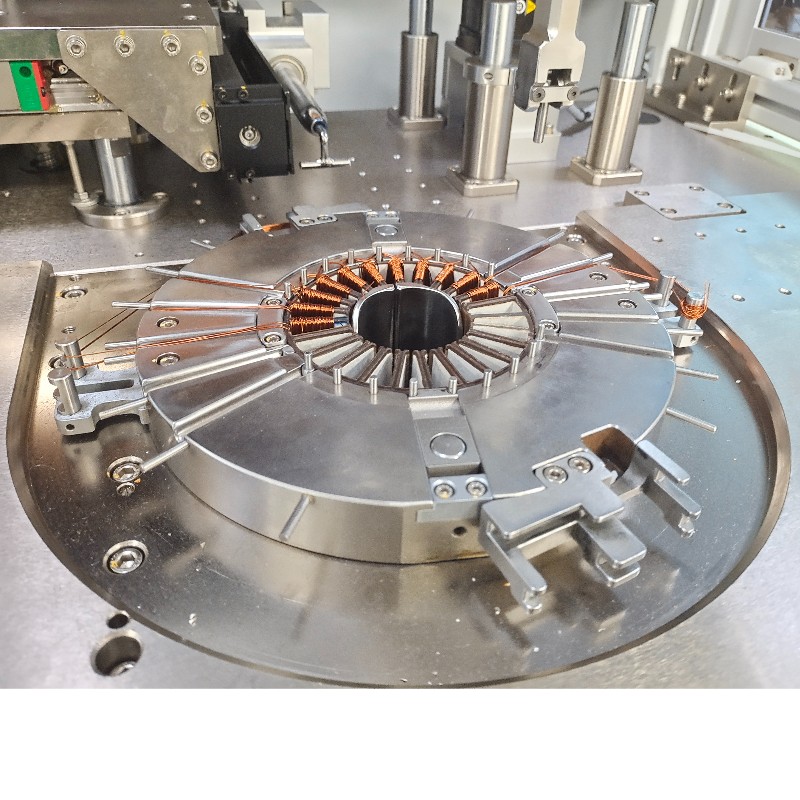

The pictures of finished multi-strand stator
Customization:
Brand Name: XINGTE
Model Number: XT-DGRXJ
Place of Origin: China
Certification: CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden case
Delivery Time: 15-35 days
Payment Terms: LC, T/T
Supply Ability: 2000PCS/MONTH
Machine dimensions: 1380(L)x1360(W)x1900(H)mm
Stator stack height: Max 150mm
Power supply: 380v, 50Hz
Yield rate: ＞95%
Safety Features: Emergency Stop Button, Overload Protection
Customized Service: We offer customized services for our
multi-strand stator winding machine, multi-wire stator winding
machine, and multi-strand stator winding machine. Our team can
tailor the machine to meet your specific needs and requirements,
ensuring maximum efficiency and productivity for your operations.
We also provide on-site installation and training services to help
you get the most out of your machine. Contact us to discuss your
customization needs and get a quote today!
